Installing Coolant Reservoir

WARNING: This page is about a different variant/trim than selected.

Information

Coat O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).

Installation is performed in reverse order to removal.
Fastening nuts -1- securing coolant reservoir -1- to body > Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

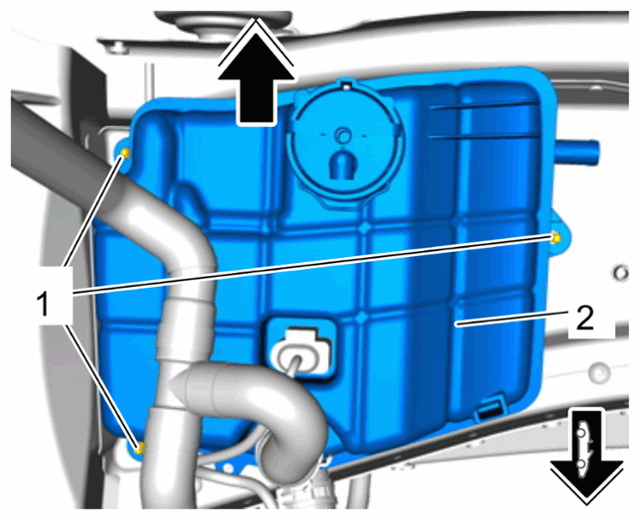

Coolant reservoir
