Removing And Installing Air Guide For Side Radiator

1. 1.1 Only required for air guide for side radiator at the right:

   Pull outside temperature sensor -2-  out of air guide for side radiator -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing outside temperature sensor (shown on the 991)

2. 1.2 Loosen locking lugs -2-  on the retaining frame using a plastic wedge and remove air guide for side radiator -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

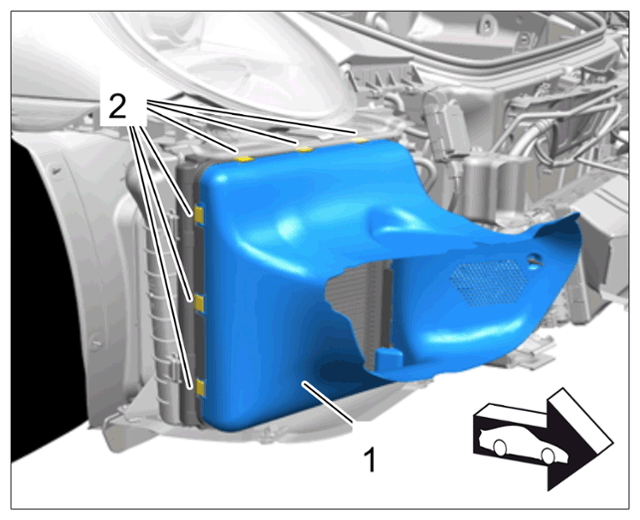

Removing air guide for side radiator (shown on the 991)
