Removing And Installing Air Guide For Middle Radiator

WARNING: This page is about a different variant/trim than selected.

Information

Air guide for middle radiator is only installed on vehicles with middle radiator.

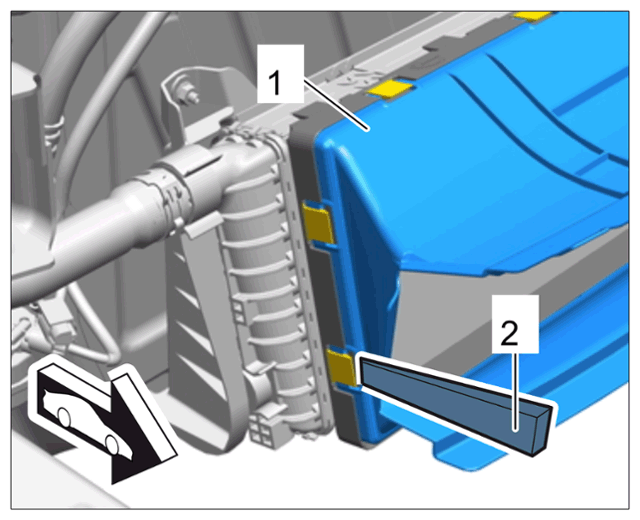

  1. Unclip locking lugs on retaining frame using a small plastic wedge -2-  and remove air guide for middle radiator -1-  .
    G14944831Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing air guide for middle radiator

  2. Installation is performed in reverse order.
