Checking Engine Coolant Level And Antifreeze Content

Information

• The coolant filled in at the factory is intended for lifetime cooling and, thus, need not be changed.

1. Open cap -1-  on the coolant reservoir in the luggage compartment and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

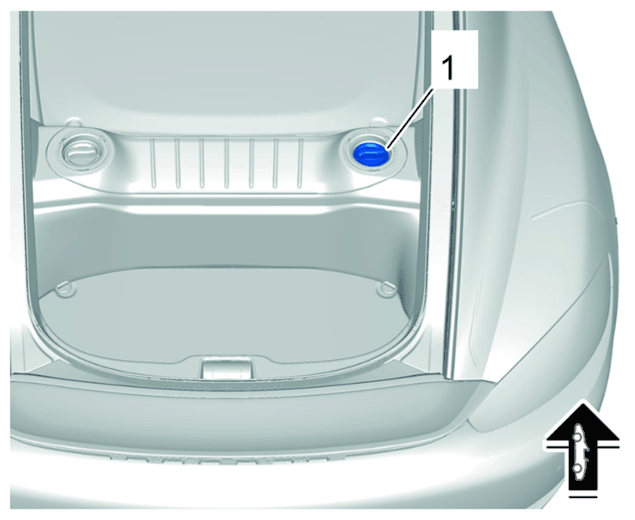

   Coolant reservoir

2. Have a suitable container ready for collecting coolant.
3. Check antifreeze content using antifreeze tester -1-  .

   If it is below -35° Celsius  , correct the antifreeze content by increasing the proportion of pure coolant accordingly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

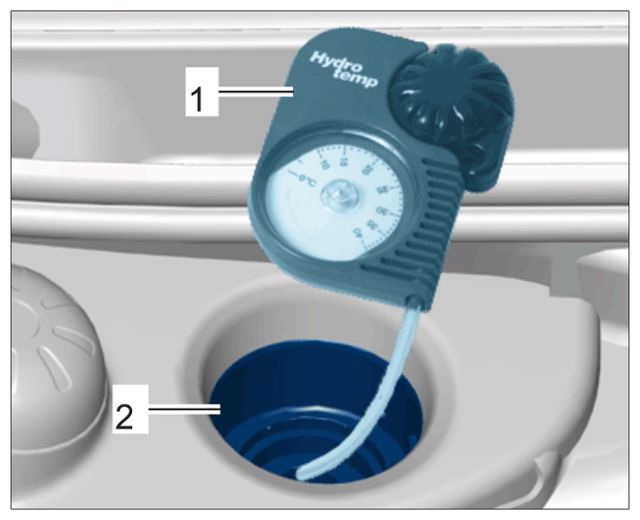

   Example of antifreeze tester

   Information

   • Only use Genuine Porsche coolant.
   • Never mix coolant with other coolants.

   Information

   • Coolant must only be added if a warning appears in the instrument cluster!
   • Then add coolant only once up to the maximum marking.
   • When the engine is started, the coolant level drops immediately. This is normal and more coolant does not have to be added!
4. Check coolant level and only add coolant if a warning appears in the instrument cluster.

   If necessary, add coolant only once up to the maximum marking -2-  !

   1. 4.1 The coolant level must never exceed the maximum marking. If this is the case, extract coolant.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

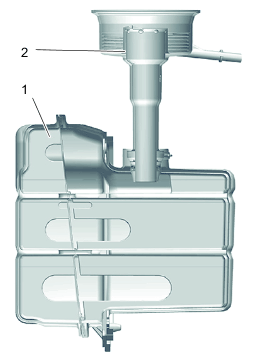

   Coolant level in the reservoir

   1. Sectional view of coolant reservoir
   2. Maximum coolant level (marking)
