Removing Connecting Link For Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew fastening nuts -1 and 2-  on the connecting link -3-  To loosen fastening nut -2-  counter at the hexagon -arrow-  .

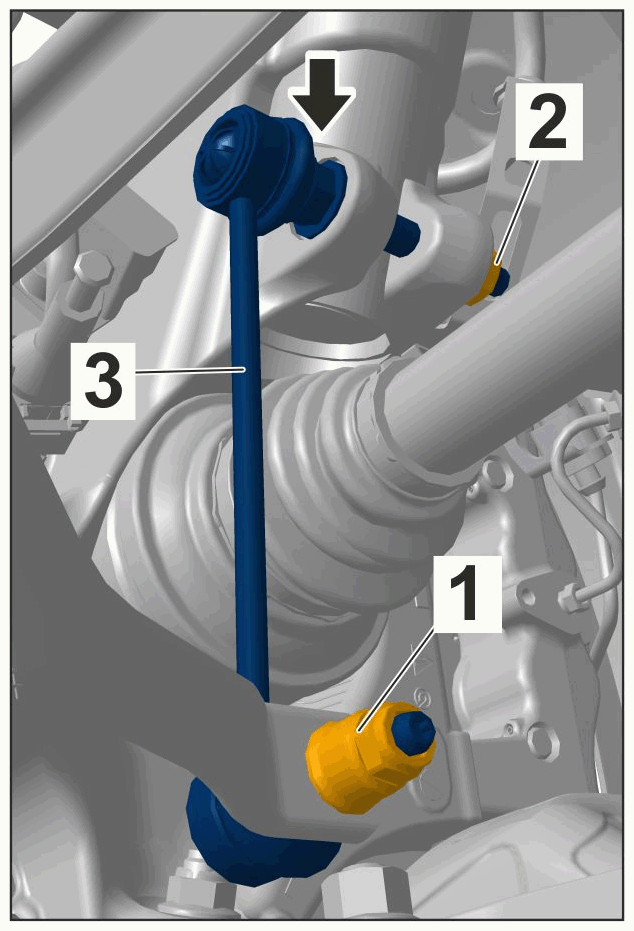

    G14948050Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link

  2. Remove connecting link
