Installing Connecting Link For Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.
  1. Installation is performed in reverse order.
    1. 1.1  Tighten fastening nuts to the specified tightening torque.

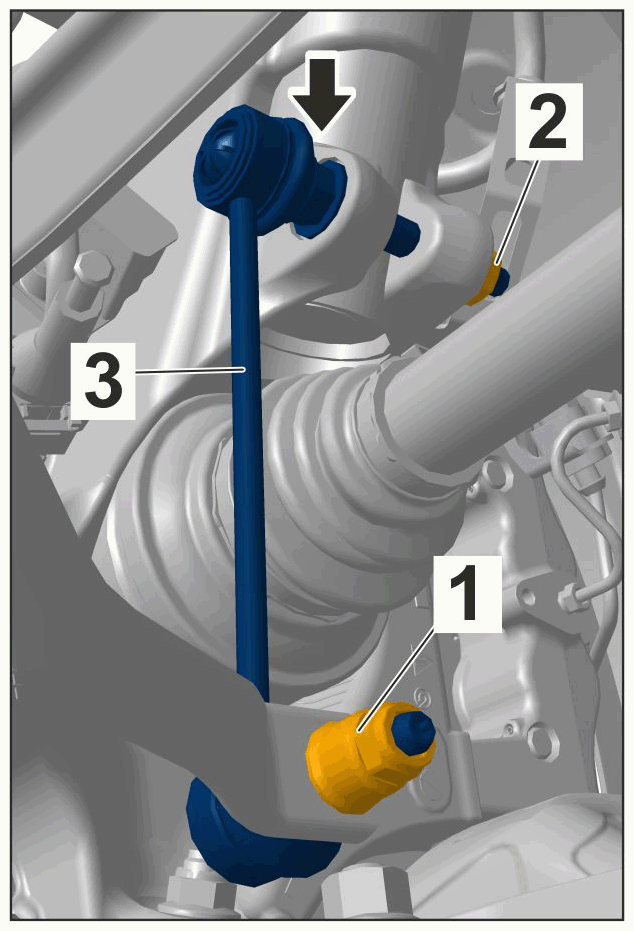

      Connecting link to anti-roll bar -1-  : > Initial tightening 40 Nm (29.5 ftlb.)  > Final tightening + 30°

      Connecting link to wheel bearing housing -2-  : > Initial tightening 50 Nm (36.9 ftlb.)  > Final tightening + 180°

      G14948051Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for connecting link
