Removing Rear Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.
  1. Remove connecting link -1-  on both sides of the anti-roll bar -2-  .

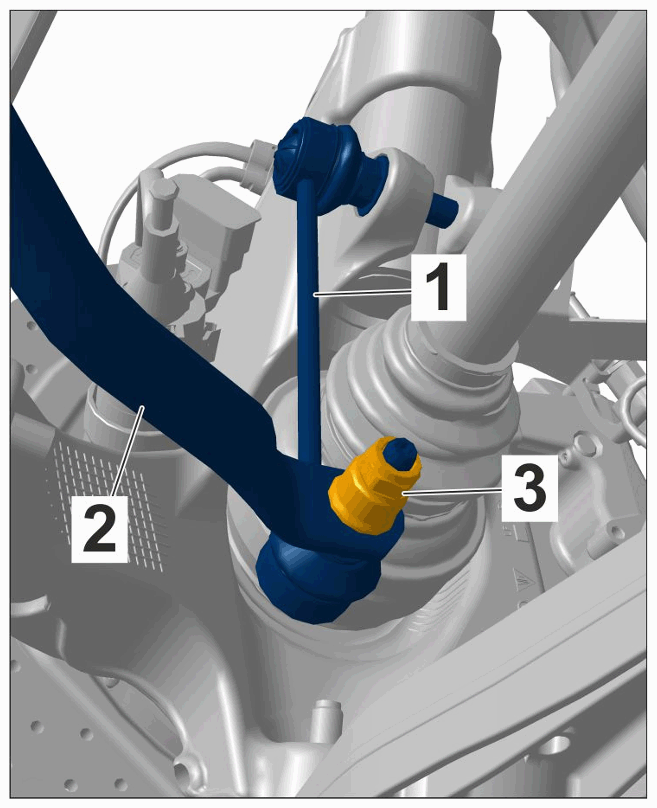

    G14948046Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connecting link on anti-roll bar

    1. 1.1  Unscrew fastening nut -3-  and counter at the ball-joint pin using a Torx screwdriver.
  2. Remove transverse strut -2-  from the anti-roll bar.

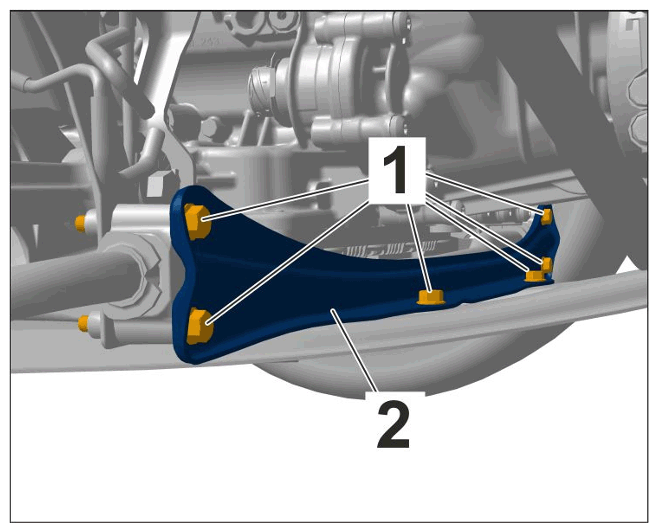

    G14948047Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transverse strut for anti-roll bar

    1. 2.1  Unscrew fastening screws -1-  .
    2. 2.2  Remove transverse strut -2-  .
  3. Remove anti-roll bar by pulling it sideways.
