Installing Rear Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.
  1. Place anti-roll bar in installation position and engage it on the connecting links.
  2. Fit transverse strut -2-  with stabilizer bearings to rear-axle carrier side sections.

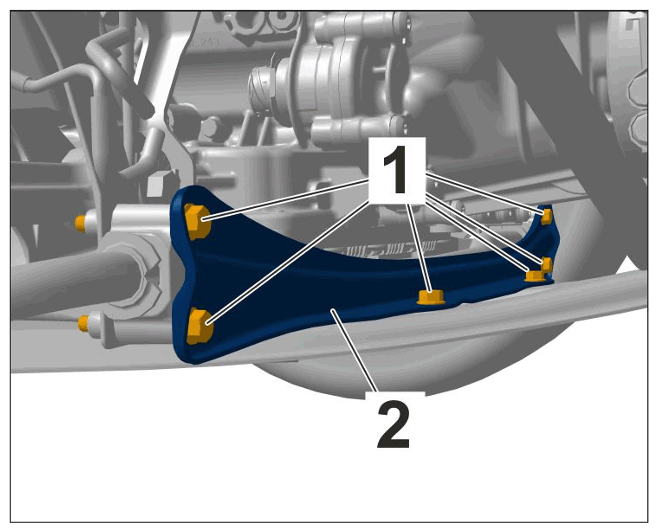

    G14948048Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transverse strut for anti-roll bar

    1. 2.1  Tighten fastening screws -1-  .

      Transverse strut with stabilizer bearing to rear-axle carrier side section: > Initial tightening 20 Nm (14.8 ftlb.)  v > Final tightening + 90°

      Transverse strut to support plate: >

  3. Fit connecting link -1-  on both sides of the anti-roll bar -2-  .

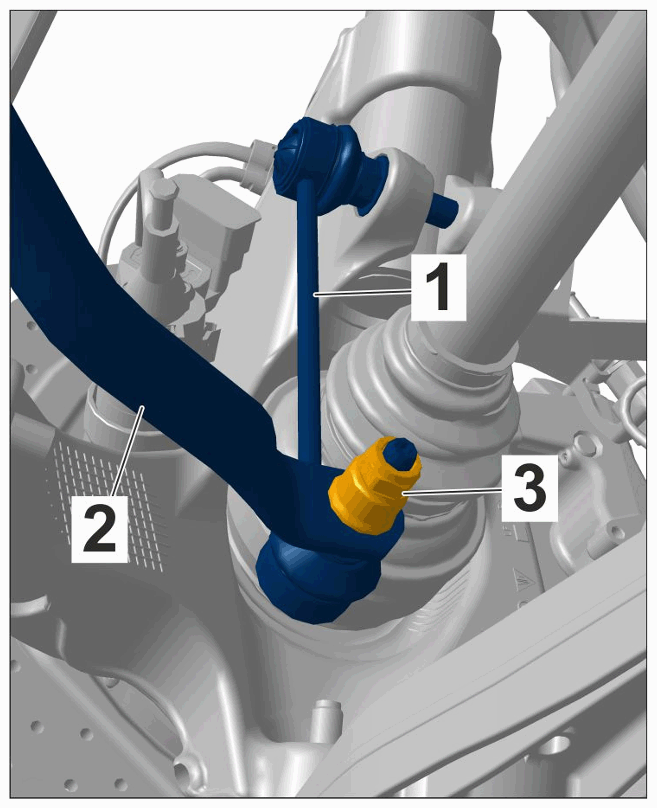

    G14948049Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connecting link on anti-roll bar

    1. 3.1  Tighten fastening nut -3-  and counter at the ball-joint pin using a Torx screwdriver. > Initial tightening 40 Nm (29.5 ftlb.)  > Final tightening + 30°
