Disassembling Rear Spring Strut

Information

Recommendation for workshops replacing shock absorbers/spring dampers:

• Dampers can be replaced separately up to a mileage of 30, 000 km or 3 years.
• If the mileage is > 30, 000 km or the components are more than 3 years old, we recommend replacing them in pairs.

Information

• Protect electric lines when removing and installing the spring strut.
• Do not lift/transport the spring strut/shock absorber at the electric lines.
• Do not damage electric lines when transporting, unpacking, storing or disassembling and assembling the spring strut.
• Sort and mark individual components of the spring strut before setting them down.
• When using the spring compressor, always make sure that the spring compressor is seated and fitted correctly on the spring! Danger of injury!

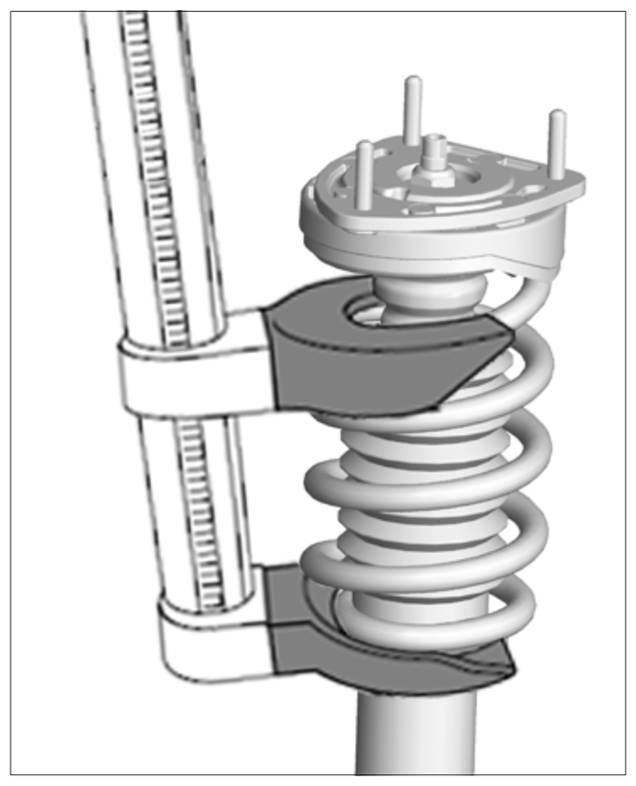

1. Pre-tension the coil spring using > V.A.G 1752/1 - Spring clamp  until the piston rod is relieved > Tensioning coil  spring (shown as an example).  The appropriate forks must be inserted into the spring clamp.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tensioning coil spring (shown as an example)

2. Clamp the spring strut in a suitable clamping block (tensioning device for spring struts). Alternatively, the spring clamp can also be held in a retaining device.

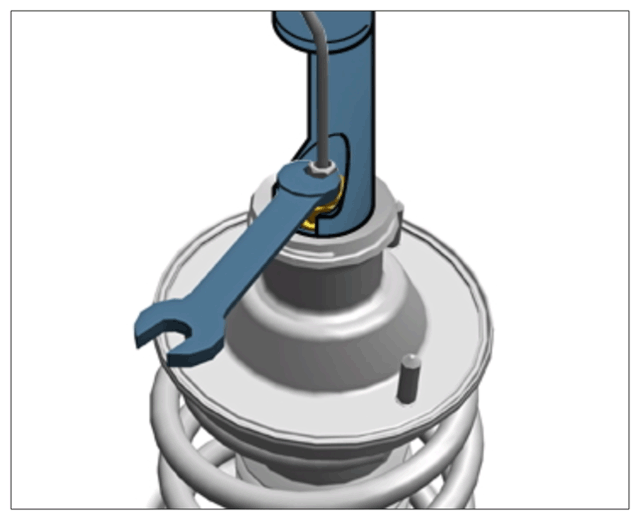

3. Unscrew lock nut on the piston rod using > 9630/2 - socket-wrench insert  . Counter at the hexagon on the piston rod using a wrench > Disassembling spring strut at the same time.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disassembling spring strut

4. Remove all parts from the piston rod.
