Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 1 |
|---|---|---|---|---|---|
| Steering tie rod to wheel bearing housing | Replace lock nut, M12x 1.5 | Tightening torque | 85 Nm (62.7 ftlb.) | ||
| Trailing arm to wheel bearing housing (GT4/Spyder) | Screw M12x 1.5 x 95 | Tightening torque | 120 Nm (88.5 ftlb.) | ||
| Spring strut to body | Item 2: Hexagon nut, M8 | Tightening torque | 33 Nm (24.3 ftlb.) | ||
| Spring strut to top wheel bearing housing | Item 3: M12x 1.5/Replace screw and nut | Initial tightening | 50 Nm (36.9 ftlb.) | ||
| Spring strut to top wheel bearing housing | Item 3: M12x 1.5/Replace screw and nut | Final tightening | + 180° | ||
| Connecting link to anti-roll bar | Collar nut, M10/replace | Initial tightening | 40 Nm (29.5 ftlb.) | ||
| Connecting link to anti-roll bar | Collar nut, M10/replace | Final tightening | + 30° | ||
| Connecting link to wheel bearing housing | Replace M12x 1.5/hexagon nut | Initial tightening | 50 Nm (36.9 ftlb.) | ||
| Connecting link to wheel bearing housing | Replace M12x 1.5/hexagon nut | Final tightening | + 180° | ||
| Holder to wheel bearing housing | Screw with washer assembly, M6 x 16 | Tightening torque | 10 Nm (7.5 ftlb.) | ||
| Front drive shaft to wheel hub | Lock nut, M22x 1.5/always replace following removal | Tightening torque | 460 Nm (339.3 ftlb.) | ||
| Brake calliper to wheel bearing housing, front and rear axle for re-using screws (PCCB and grey cast iron brakes) | M12x 1.5/Different screw length on front and rear axle (see allocation in PET). | Tightening torque | 85 Nm (62.7 ftlb.) | ||
|

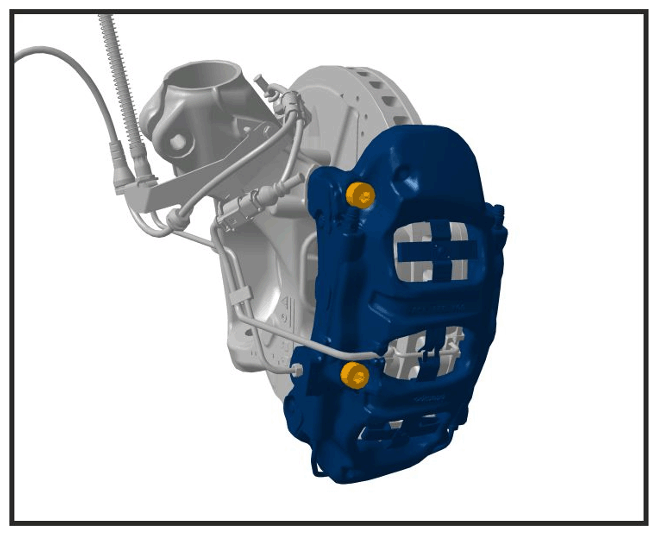

Brake calliper to wheel bearing housing (in picture: front axle) |
|||||
