Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 1 |
| Speed sensor to wheel bearing housing |
Cheese head bolt, M6 x 16 |
Tightening torque |
10 Nm (7.5 ftlb.) |
|
|
| Brake disc to wheel hub (front and rear axle) |
M6 |
Tightening torque |
5 Nm (3.7 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

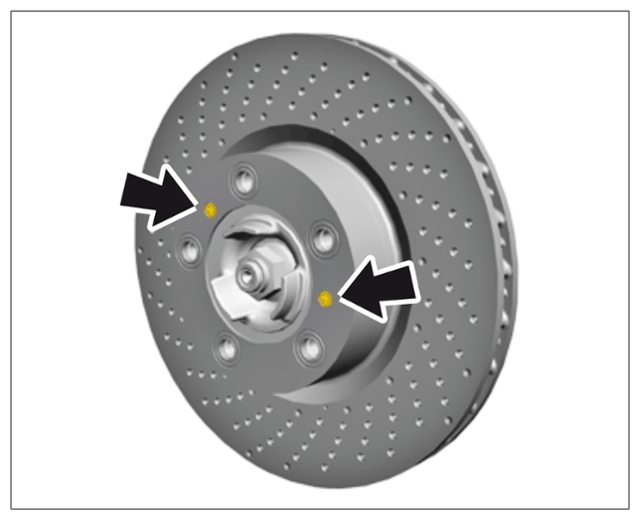

Brake disc screws |
