Installing Rear-Axle Carrier Side Section

Information

The press-in screws on the rear-axle carrier side section must be free of grease and oil residues! Check press-in screws before installation and clean them if necessary.

1. Position rear-axle carrier side section -3-  in installation position on body, screw on fastening nut -1-  . screw in and tighten new fastening screw -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

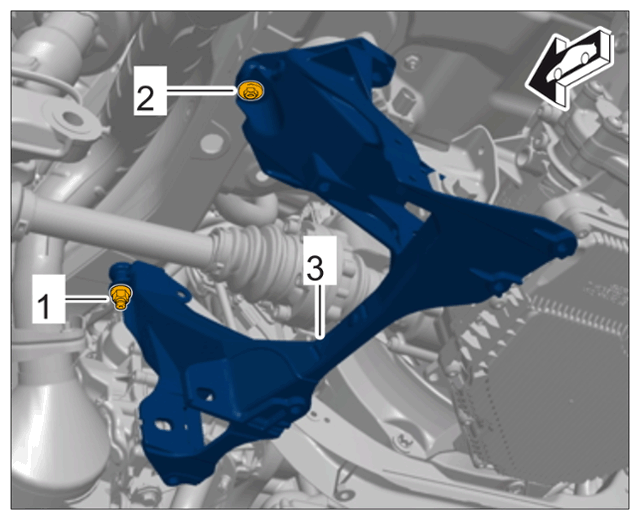

   Bracket on body

   Fastening nut -1-  :> Tightening torque 65 Nm (47.9 ftlb.)

   Fastening screw -2-  : > initial tightening 30 Nm (22.1 ftlb.)  > final tightening + 90°

2. Screw on and tighten two fastening nuts -1-  on to the transmission mount -3-  > Tightening torque 33 Nm (24.3 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

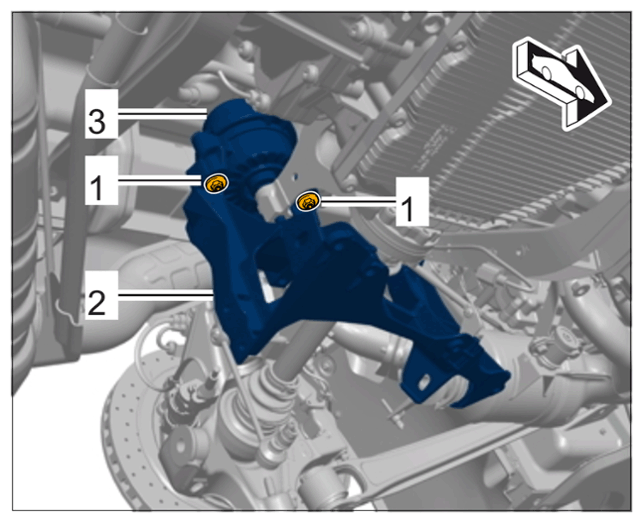

   Bracket on transmission mount

3. Install tie rod and lower trailing arm.

   Information

   Following installation, seal the threaded joint securing tie rod to wheel bearing housing with wax as shown in -Illustration-  .

   Use Pfinder AP14/4 for this (see PIWIS Parts Information - PET)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

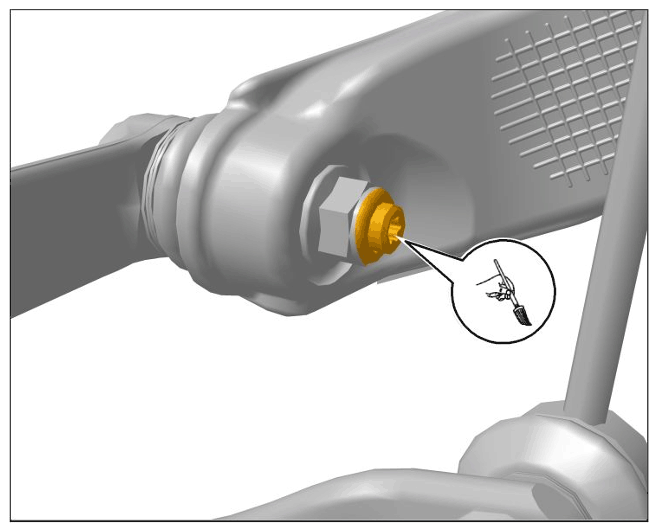

   Applying wax on marked e  rear

   1. 3.1  Fit tie rod -2-  and lower trailing arm -3-  on the wheel bearing housing and screw on and tighten fastening nuts -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

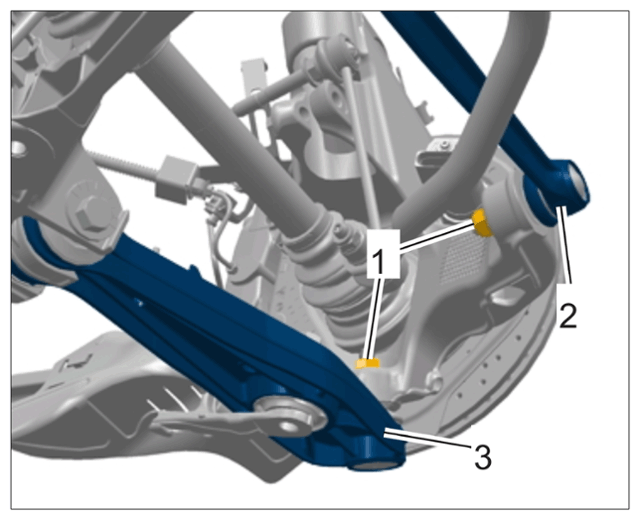

      Securing tie rod and lower trailing arm

      Fastening nut for tie rod: > Tightening torque 85 Nm (62.7 ftlb.)

      Fastening nut for lower trailing arm: > Tightening torque 120 Nm (88.5 ftlb.)

   2. 3.2  Install eccentric threaded joints for the tie rod -2 and lower trailing arm -1-  on the rear-axle carrier side section and move them to the basic position marked during removal.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

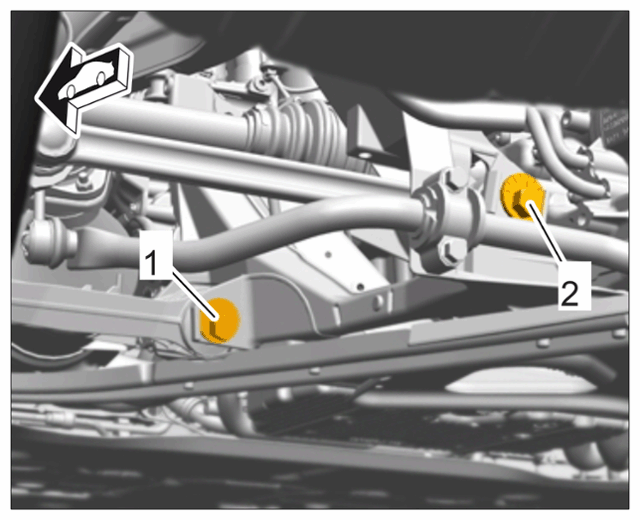

      Camber and toe eccentric adjuster

      The eccentric threaded joints will be tightened to the required tightening torque during subsequent chassis adjustment.

4. Tighten threaded joint -1-  for the diagonal arm -3-  > Tightening torque 160 Nm (118 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

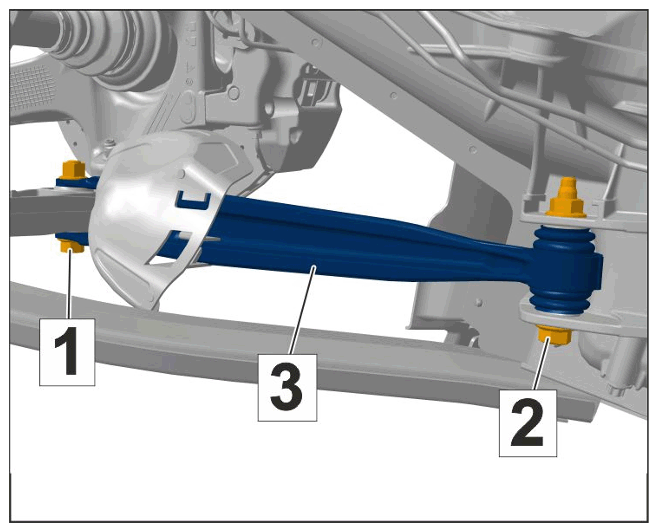

   Diagonal arm mounting

5. Install rear brake calliper with line bracket

   Information

   • Brake calliper screws can always be re-used if no damage can be identified.
   • Replace damaged bolts.
   • Observe different tightening specifications!
   1. 5.1  Fit brake calliper together with the holder and screw in and tighten new brake calliper fastening screws -Arrows-  . > Tightening torque 85 Nm (62.7 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

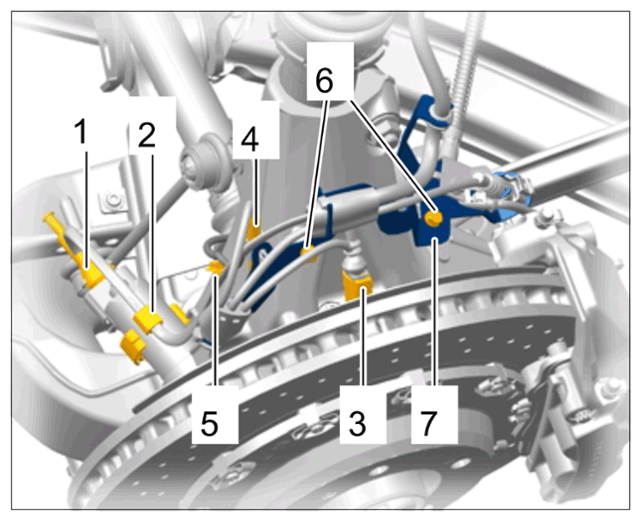

      Fastening screws on brake calliper

   2. 5.2  Screw in and tighten fastening screws -6-  securing holder to wheel bearing housing. > Tightening torque 10 Nm (7.5 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Holder on wheel bearing housing

   3. 5.3  Plug in and lock electric plug connection on the rpm sensor -3-  .
   4. 5.4  Plug in and lock electric plug connection for electric parking brake (EPB) -1-  and clip the line into the cable retainer -2-  .
