Removing Diagonal Arm

WARNING: This page is about a different variant/trim than selected.

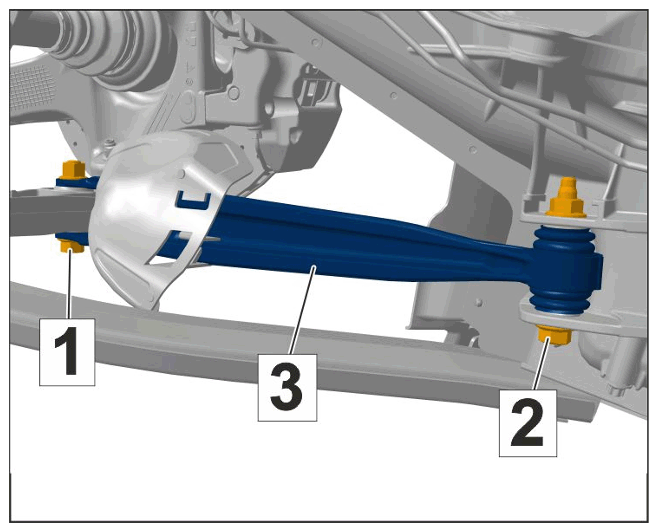

  1. Loosen diagonal arm -3-  at the threaded joints -1 and 2-  ,
    G14947953Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Diagonal arm mounting

  2. Carefully remove diagonal arm.
