Installing Diagonal Arm

WARNING: This page is about a different variant/trim than selected.

Install diagonal arm in reverse order.

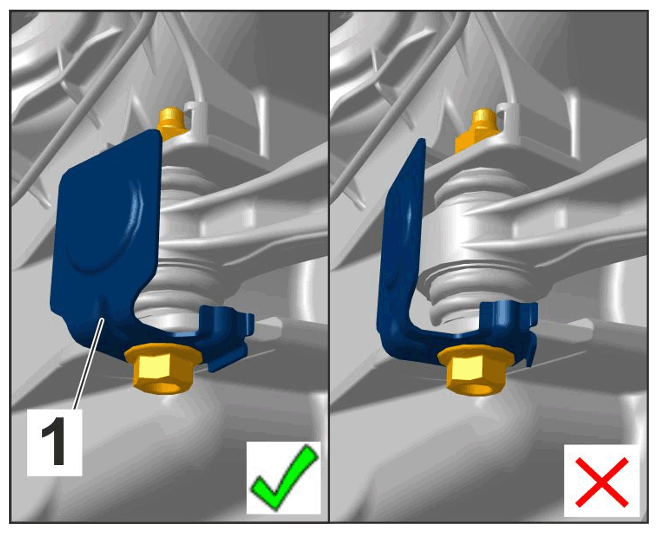

1.1 Only for right-hand side of vehicle: Fit protective plate -1- (twist lock must be touching the body!)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting protective plate

1.2 Tighten threaded joints to the specified tightening torque.

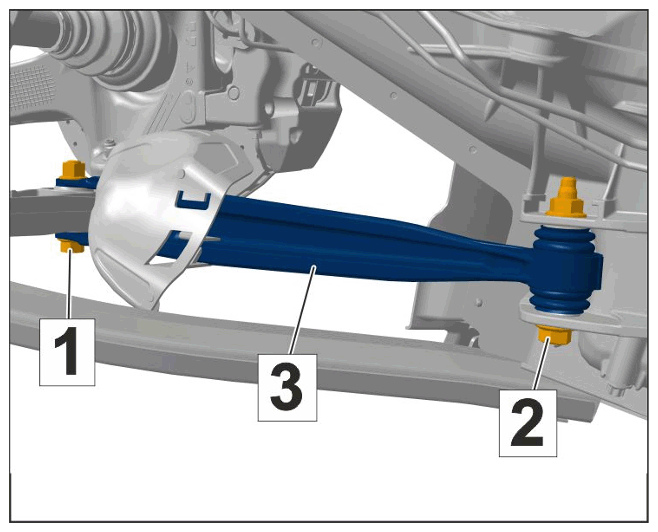

Diagonal arm to lower trailing arm > Tightening torque 160 Nm (118 ftlb.)

Diagonal arm to body -2- : > Initial tightening 80 Nm (59 ftlb.) > Final tightening + 60°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Diagonal arm mounting
