Replacing drive shaft bellows

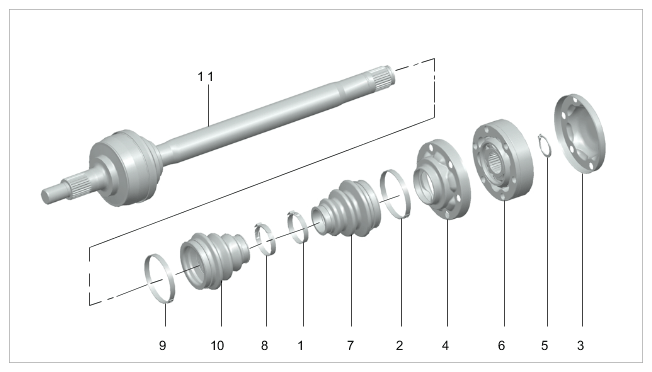

Drive shaft disassembled
- Clamp (clip), small
- Clamp (clip), large
- Cap
- Bellows holder
- Circlip
- Constant-velocity joint
- Bellows
- Clamp (clip), small
- Clamp (clip), large
- Bellows
- Profile shaft
Information
- Do not remove bellows holder on the joint on the wheel side.
- Replacing constant-velocity joints: Only the constant-velocity joint on the transmission side is available. Otherwise, replace the complete drive shaft.
- Mark the drive shaft (position of bellows).

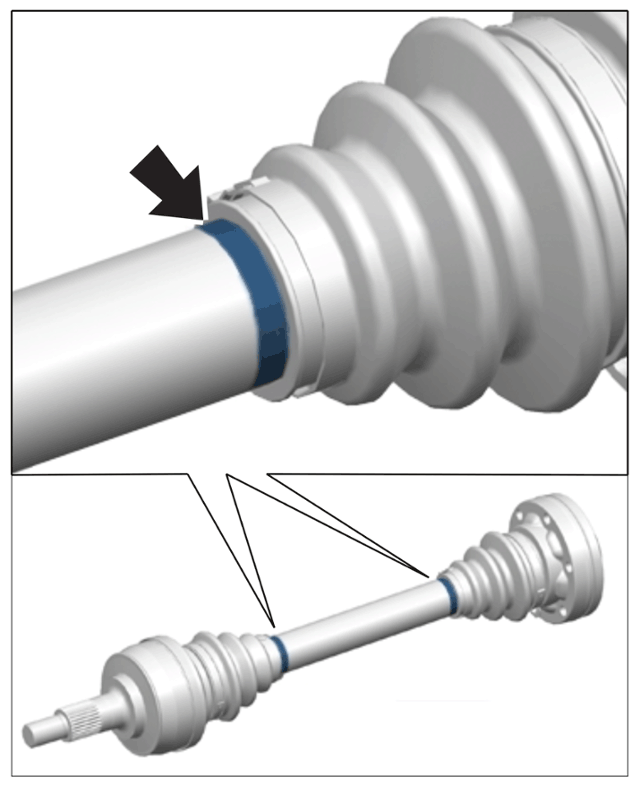

Before disassembly, mark the correct position of the bellows for re-installation -arrow- .
Marking position of bellows on drive shaft
- Remove bellows (on transmission side).
- 2.1
Remove clamps (clips)
Constant-velocity joint on transmission side

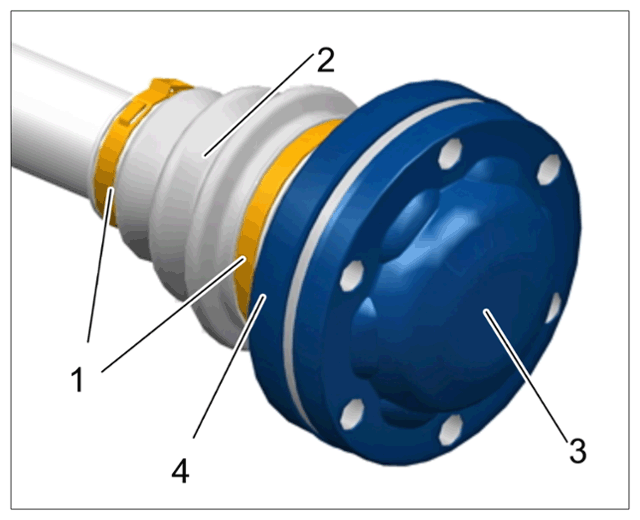

- 2.2 Then force off the cover -3- and bellows holder -4- evenly using a suitable mandrel.
- 2.3 Move bellows and bellows holder to the wheel side of the drive shaft.
- 2.4

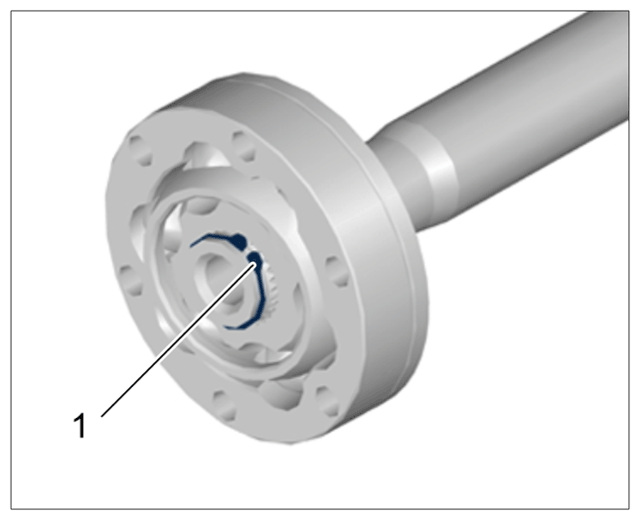

Remove circlip -1-
using suitable pliers.
Removing circlip
- 2.5

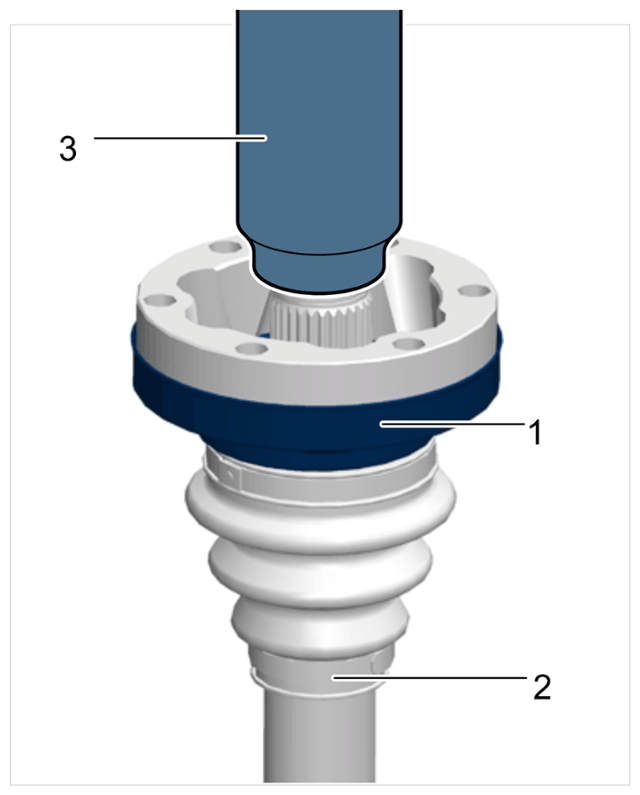

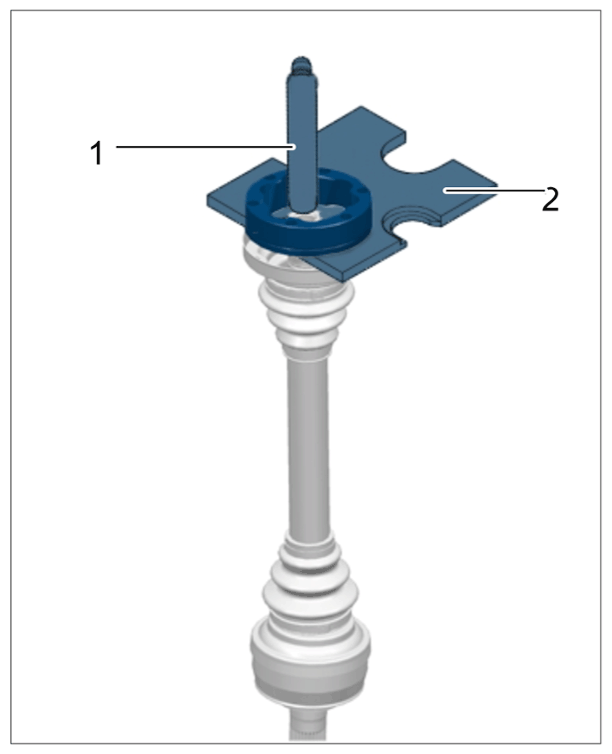

Press off constant-velocity joint using -1-
> VW408A - Pressure pad
and -2-
> VW401 - Pressure plate
.
Pressing off constant-velocity joint
- 2.6 Slide bellows and bellows holder off the drive shaft.
- 2.1
Remove clamps (clips)
- Remove bellows on wheel side.
Bellows on wheel side

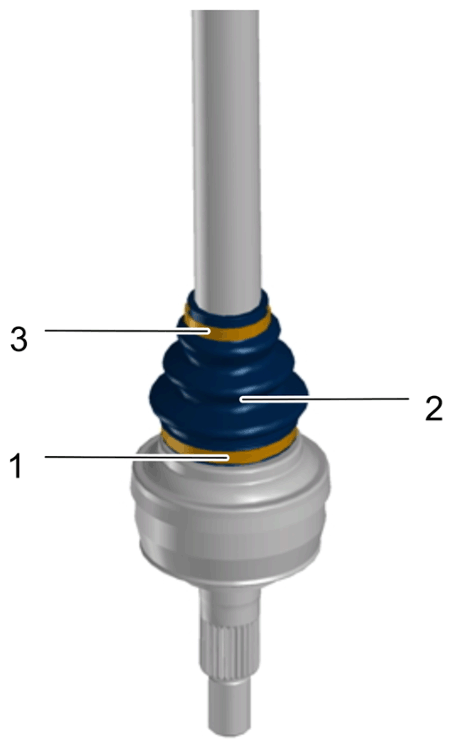

- 3.1 Remove clamps (clips) -1 and 3- .
- 3.2
Slide bellows -2-
off the drive shaft.
Information
Do not remove bellows holder on the joint on the wheel side.
The constant-velocity joints must be able to move slightly in an axial direction (length compensation).
- Re-grease constant-velocity joint on the wheel side using special grease if necessary (see Parts Information). Grease must be pressed in through the bellows holder into the joint.
Greasing constant-velocity joint on wheel side
- Fit bellows -2-
on the wheel side on the bellows holder.
Bellows on wheel side
Fit large clamp (clip) -1- and tighten using > V.A.G 1275A - Hose clip pliers or commercially available special pliers.
Slide small clamp (clip) -3- onto the drive shaft, but do not tighten yet.
- Re-grease constant-velocity joint on the transmission Side using special grease if necessary (see Parts Information).
- Slide clamps for bellows onto the profile shaft.
- Assemble bellows with bellows holder.
- 8.1

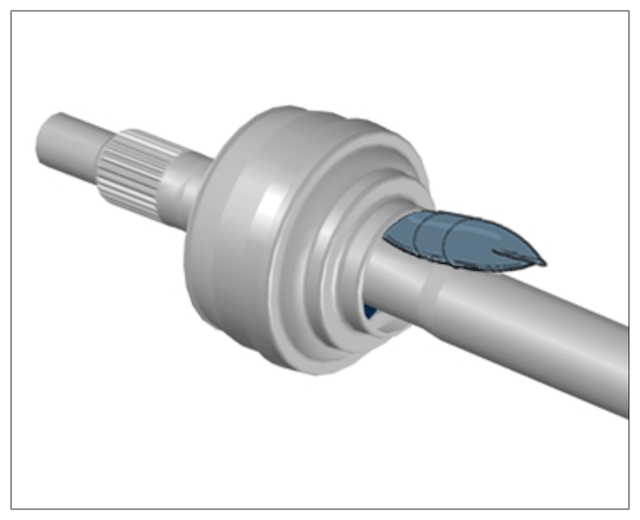

Coat sealing face of the bellows holder -arrow-
with special sealant (see Parts Information).
Coating bellows holder on transmission side with sealant
- 8.2

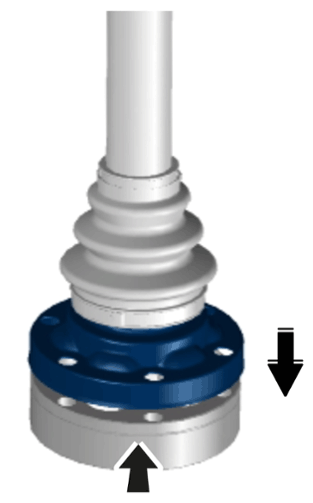

Tap bellows holder evenly onto the constant-velocity joint at congruent holes (holes for the fastening screws) using a plastic hammer (do not use force).

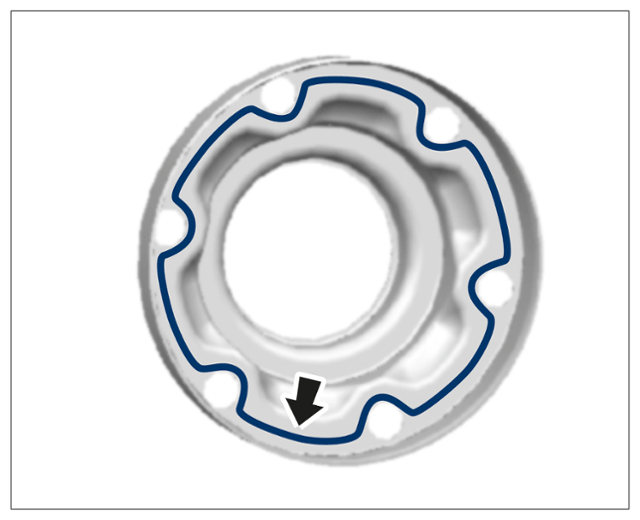

Tap on bellows holder on the side of the constant-velocity joint with the groove -arrow- .
Fitting bellows holder on constant-velocity joint (shown as an example)
- 8.1
Coat sealing face of the bellows holder -arrow-
with special sealant (see Parts Information).
- Assemble constant-velocity joint and bellows -1-
with the profile shaft -2-
.
Pressing on constant-velocity joint
- 9.1 Tap or press the constant-velocity joint -1- using a suitable pressure piece -3- so that it fits onto the profile shaft -2- at the correct position.
- 9.2 Fit new circlip using suitable pliers.
- Install cover on the transmission side.
- Position bellows according to the marking applied previously -arrow-
. Tighten clamps (clips) at this position using > V.A.G 1275A - Hose clip pliers
or commercially available special pliers.
Marking position of bellows on drive shaft
