Installing Support Plate
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Pointed or sharp objects
- Risk of cracks, pricks or cuts
→ Wear personal protective gear.
Information
The press-in screws on the rear-axle carrier side section must be free of grease and oil residues! Check press-in screws before installation and clean them if necessary

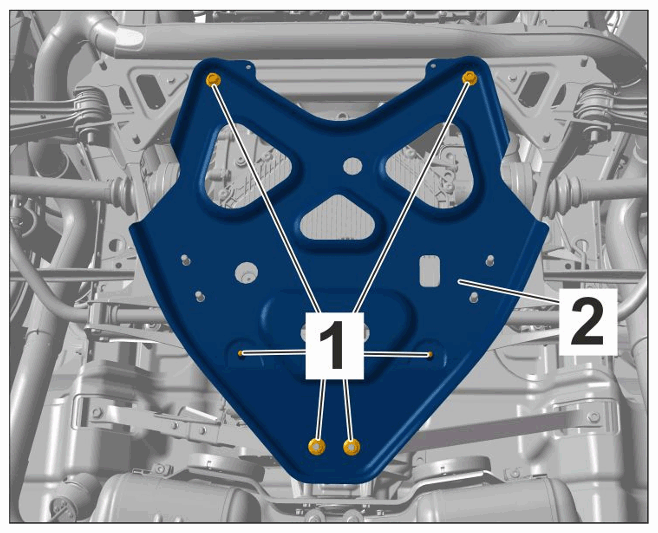

- Fit support plate -2-
.
Installing support plate
- Tighten fastening screws/fastening nuts -1-
on the support plate to the specified tightening torque.
Support plate to rear-axle cross member: > Tightening torque 65 Nm (47.9 ftlb.)
Support plate to V-strut (rear transverse strut): > Tightening torque 65 Nm (47.9 ftlb.)
