Removing Intake Pipe Pressure Sensor
WARNING: This page is about a different variant/trim than selected.

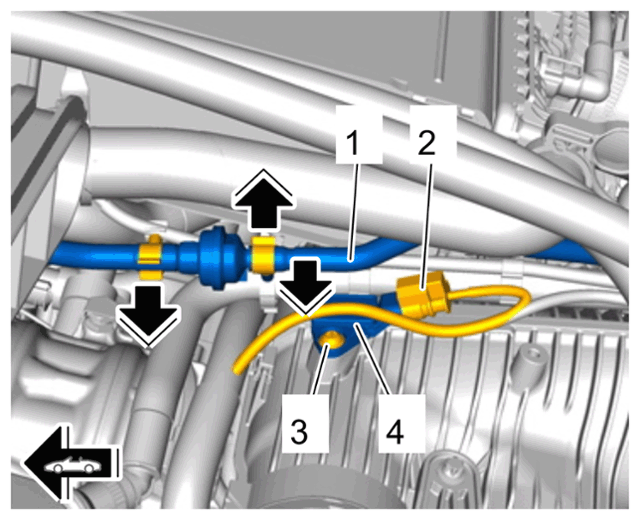

- Unclip vacuum line -1
- (-arrows-
) and set it aside.
- Release and disconnect electric plug connection -2
-.
- Unscrew and remove fastening screw -3
-.
- Carefully pull out intake pipe pressure sensor -4
-.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
