Installing Centre Intake-Air Distributor

WARNING: This page is about a different variant/trim than selected.

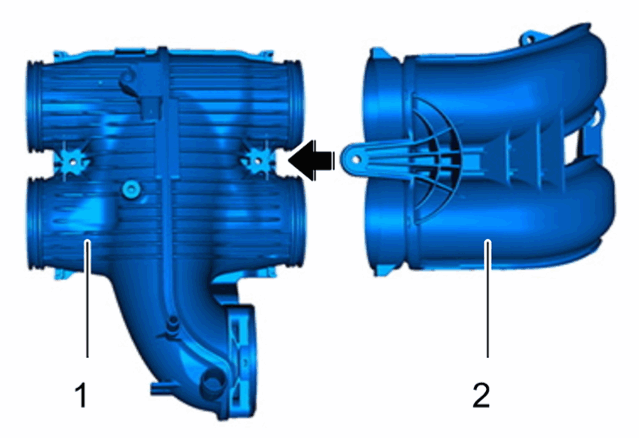

  1. Connect right section -2  - to the centre intake-air distributor -1  - (-arrow  -).
    G14945826Courtesy of PORSCHE CARS NORTH AMERICA, INC.
