Subsequent Work
WARNING: This page is about a different variant/trim than selected.

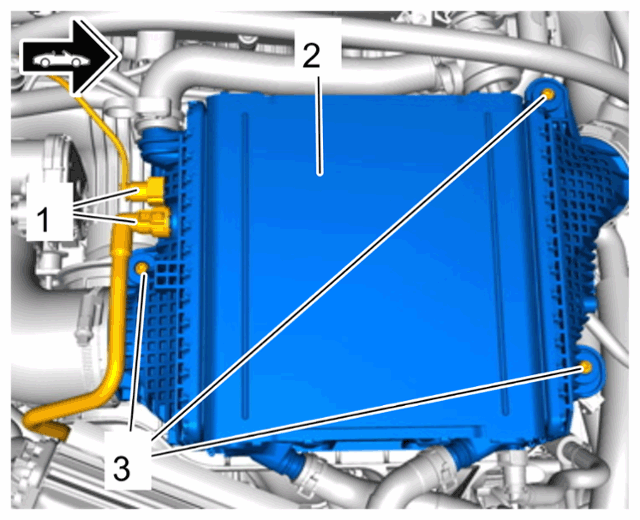

- Secure charge-air cooler -2
-.
- 1.1 Fit fastening screws -3
- and tighten to > Tightening torque 10 Nm
.
- 1.2 Connect vacuum lines -1
- to the charge-air cooler -2
-.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Install engine compartment lid.
> WM, 557819 REMOVING AND INSTALLING ENGINE COMPARTMENT LID
- Remove protective covers from the vehicle.
