Preliminary Work
WARNING: This page is about a different variant/trim than selected.
- Place protective covers on the vehicle.
- Remove engine compartment lid.
> WM, 557819 REMOVING AND INSTALLING ENGINE COMPARTMENT LID

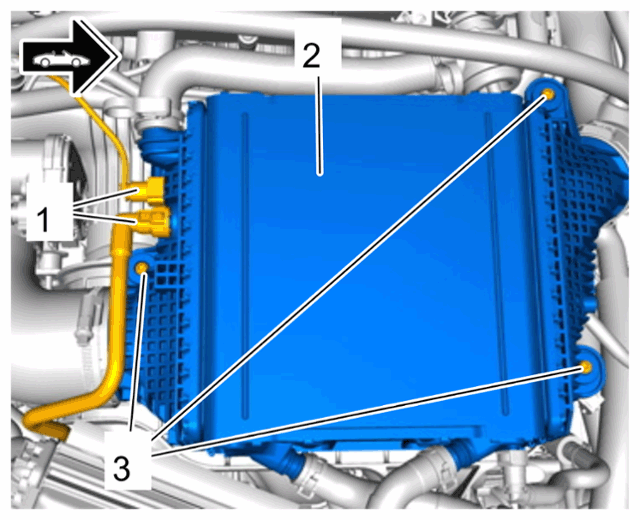

- Loosen charge-air cooler -2
-.
- 3.1 Unscrew fastening screws -3
-.
- 3.2 Release vacuum lines -1
- and pull them off the charge-air cooler -2
-.
