Preliminary Work

WARNING: This page is about a different variant/trim than selected.
WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion
    • → Avoid contact with hot parts or sources of ignition.
    • → Use suction to remove ignitable vapours.
    • → Attach warning sign in a clearly visible position.
    • → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
    • → Secure collection containers/vessels to prevent them from tipping over.

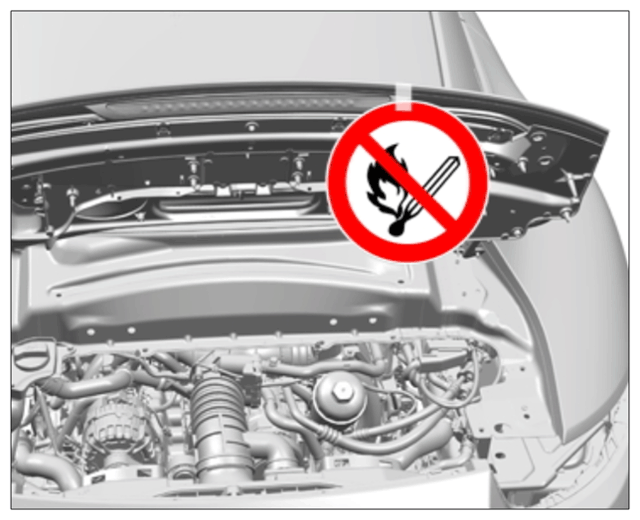

  1. Place or hang a warning sign in a clearly visible position in the work area or on the vehicle.
    G14945807Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove fuel collection pipe.

    > 243020 REMOVING AND INSTALLING FUEL COLLECTION PIPE .

  3. Spray fuel injector seats in the cylinder head with Caramba EDI special solvent for injectors and leave it to take effect.
