Removing Fuel Collection Pipe

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components
  • → Protect components from dirt and contamination.
  • → Clean or replace dirty components.

Information

• Loosen the fuel line connections carefully!
• The residual pressure in the system can cause fuel to spray out!
• Wear suitable protective clothing and goggles!

Information

• When removing and installing the fuel collection pipe, always replace the spring clamp and O-ring on the fuel injector.
• When removing and installing the fuel injectors, also replace the large O-ring and the Teflon ring in order to guarantee function and prevent leaks.

Information

• When the work is complete, check that all aids and foreign objects (e.g. cloths, tools) are removed from the engine compartment.

1. Place or hang a warning sign in a clearly visible position in the work area or on the vehicle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Remove ignition coils.

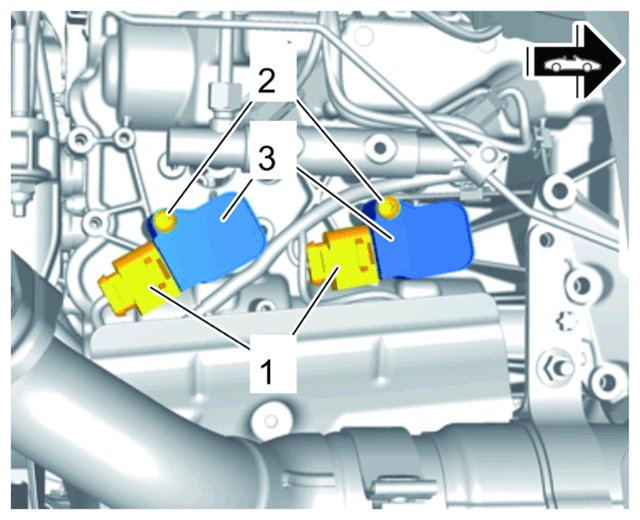

   1. 2.1 Pull off cable plug -1  -.
   2. 2.2 Unscrew screws -2  - and remove ignition coils -3  -.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

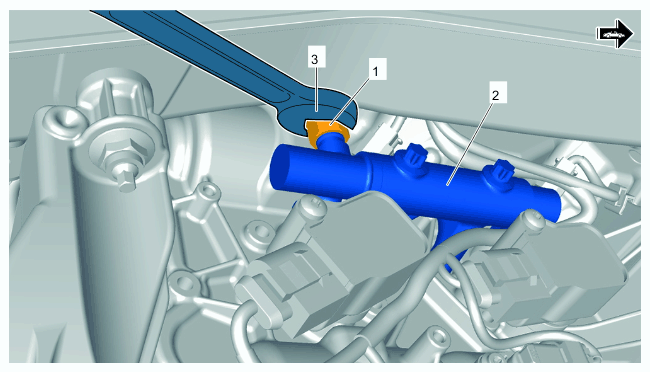

3. Carefully loosen union nut -1  - on the fuel line.

   The residual pressure in the system can cause fuel to come out!

   1. 3.1 Loosen union nut (a/f 17).
   2. 3.2 Soak up any emerging fuel with a cloth!

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

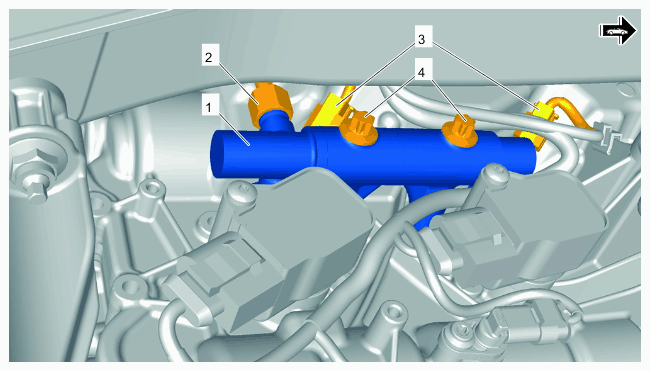

4. Loosen fuel collection pipe -1  -.
   1. 4.1 Unscrew screws -4  -.
   2. 4.2 In order to gain access for disconnecting the fuel collection pipe, release and pull off cable plug -3  - at the fuel injectors as required.
   3. 4.3 Replace screws!

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

5. Pull off fuel collection pipe with fuel injectors.
6. Remove fuel injectors and clean them.

   > 244019 REMOVING AND INSTALLING FUEL INJECTOR .
