Removing Air Cleaner Housing
WARNING: This page is about a different variant/trim than selected.

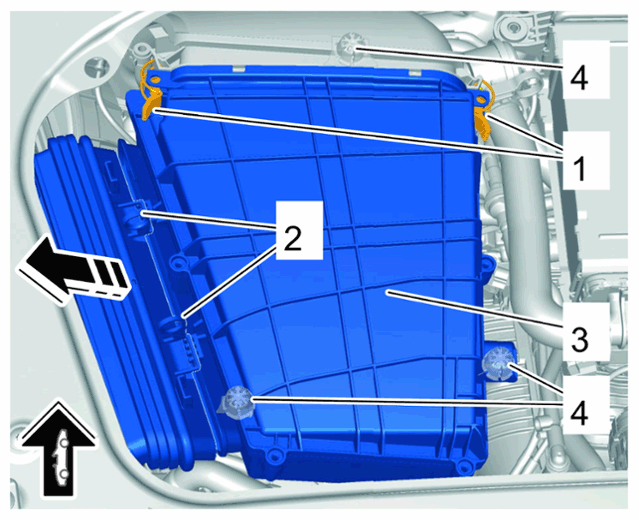

- Remove air cleaner housing.
- 1.1 Release quick-connecting locks -1 -
.
- 1.2 Release retaining clips -2
- and push air guide together. -arrow
-
- 1.3 Loosen air cleaner housing -3
- from the ball joints -4
- and guide it out of the engine compartment.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
