Removing Air-Cleaner Element

WARNING: This page is about a different variant/trim than selected.

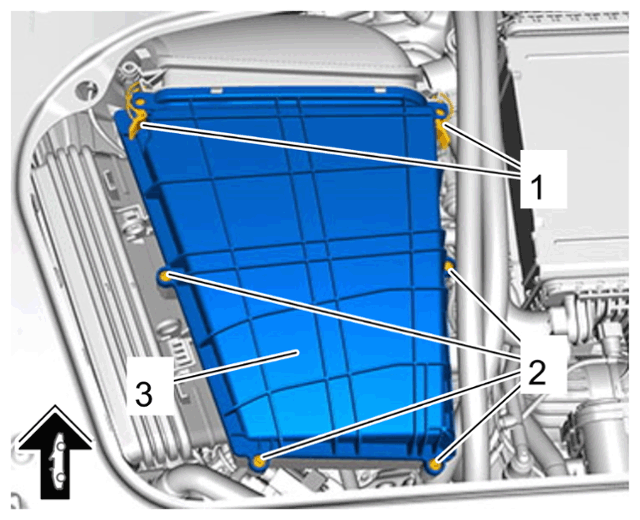

  1. Remove upper part of air cleaner.
    1. 1.1 Release quick-connecting locks -1  -.
    2. 1.2 Unscrew screws -2  -.
    3. 1.3 Remove upper part of air cleaner -3  -.
    G14945783Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove air-cleaner element.
  3. Check lower part of air cleaner and air guide for soiling and clean it using a vacuum cleaner if necessary.
