Installing Air-Cleaner Element
WARNING: This page is about a different variant/trim than selected.
- Insert air-cleaner element.

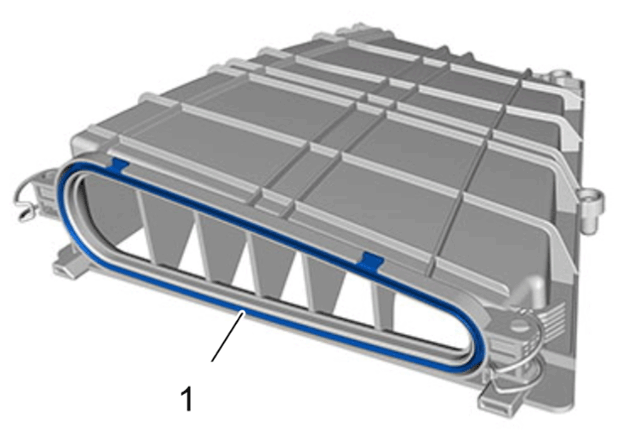

- Check the condition of the seal -1
- and replace it if necessary.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

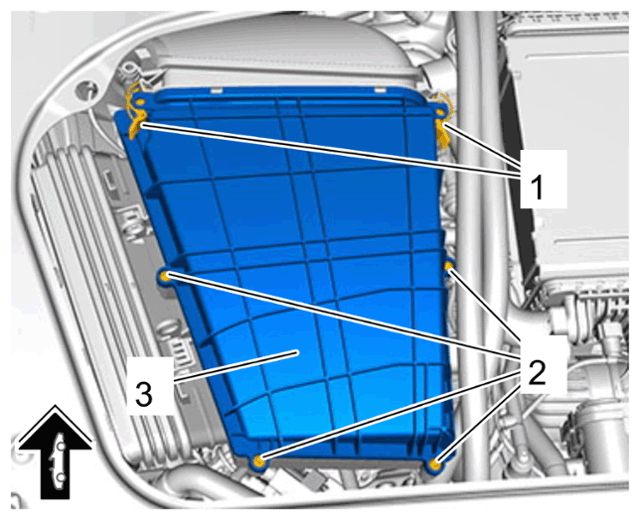

- Install upper part of air cleaner.
- 3.1 Position upper part of air cleaner -3
-.
- 3.2 Screw in and tighten screws -2
-.
- 3.3 Fasten quick-connecting locks -1
-.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
