Removing High-Pressure Sensor

WARNING: This page is about a different variant/trim than selected.
WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion
    • → Avoid contact with hot parts or sources of ignition.
    • → Use suction to remove ignitable vapours.
    • → Attach warning sign in a clearly visible position.
    • → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
    • → Secure collection containers/vessels to prevent them from tipping over.

Information

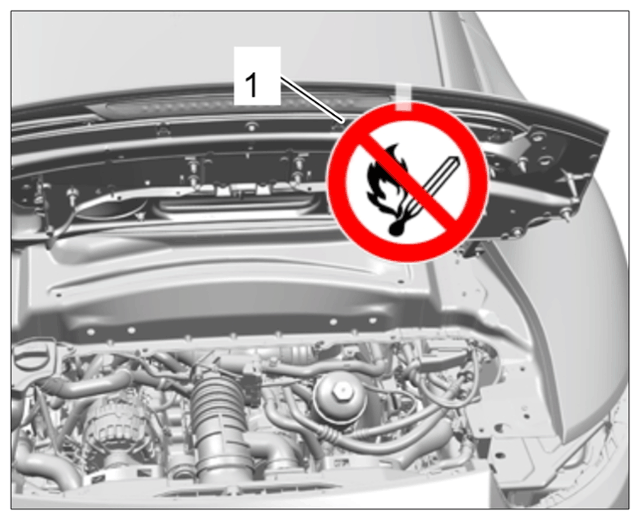

  1. Attach or mount a warning sign -1  - in a clearly visible position on the vehicle.
    G14945780Courtesy of PORSCHE CARS NORTH AMERICA, INC.

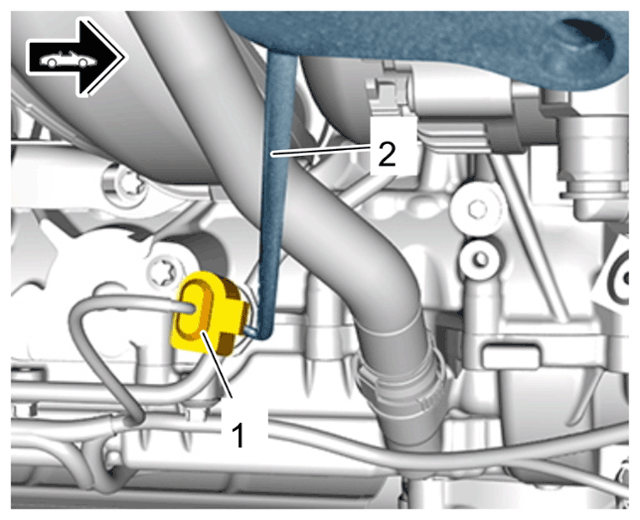

  2. Carefully release cable plug -1  - using > T10118 - assembly tool  or > 3438 - hook-2  - and disconnect it.
    G14945781Courtesy of PORSCHE CARS NORTH AMERICA, INC.

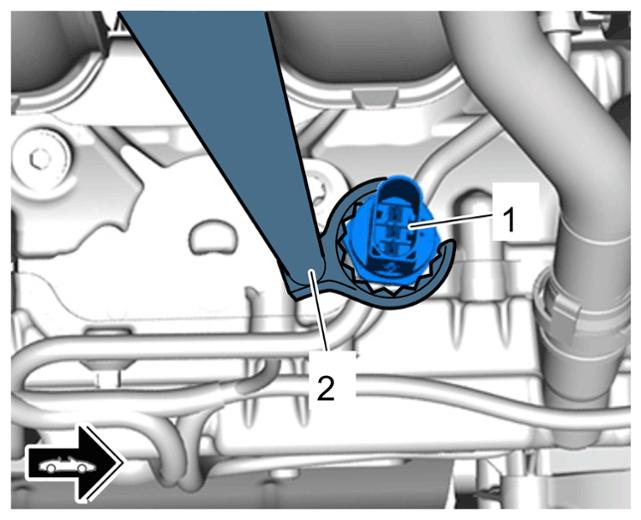

  3. Remove high-pressure sensor -1  - using > 9821 - open-ended wrench, a/f 27-2  -.
    G14945782Courtesy of PORSCHE CARS NORTH AMERICA, INC.
