Removing Speed Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Release electric plug connection -1-  from the speed sensor -2-  and pull it off.

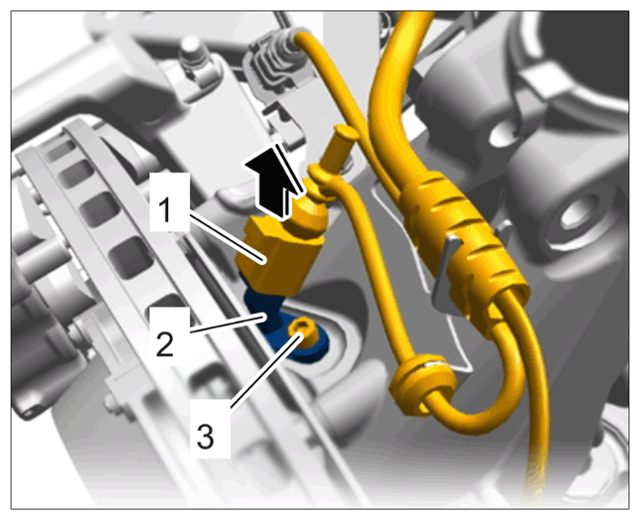

    G14948124Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for speed sensor (shown as an example)

  2. Loosen fastening screw -3-  for the speed sensor -2-.
  3. Pull the speed sensor -2-  out of the wheel carrier -arrow-  .
