Removing And Installing PASM Control Unit
WARNING: This page is about a different variant/trim than selected.

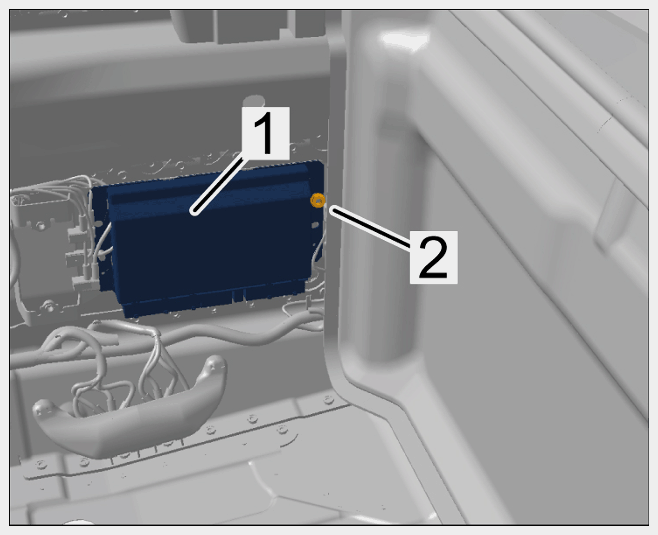

- Unscrew nut -2-
and loosen PASM control unit -1-
from the bracket.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Loosening PASM control unit

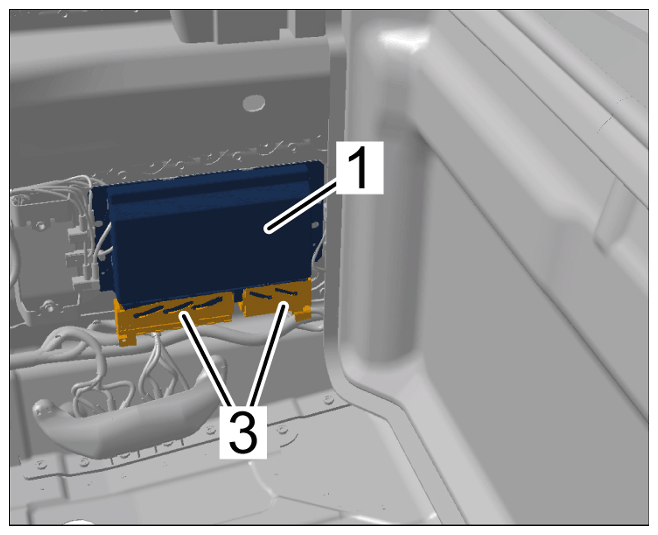

- Disconnect electric plug connections -3-
and remove PASM control unit -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing PASM control unit
- Installation is performed in reverse order.
