Installing Spreader Device (Actuator)

WARNING: This page is about a different variant/trim than selected.
  1. If you intend to re-use the actuator:  Clean the actuator carefully without damaging the dust boots.
  2. If you intend to re-use the actuator:  Visually inspect the dust boots for cracks.
  3. Further installation is performed in reverse order to removal.

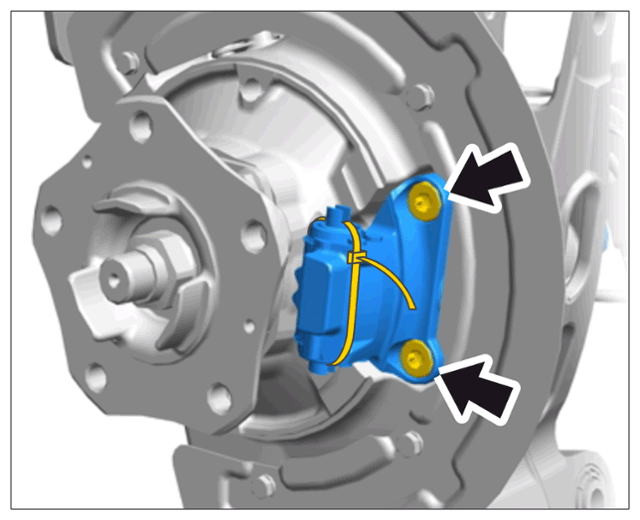

    1. 3.1  Tighten screws on actuator -Arrows-: > initial tightening 10 Nm (7.4 ftlb.) > Final tightening + 60°  .
      G14948254Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for actuator

    2. 3.2  Tighten screws on brake cover plate: >
