Removing And Installing Control Unit For Parking Brake: Notes
WARNING: This page is about a different variant/trim than selected.

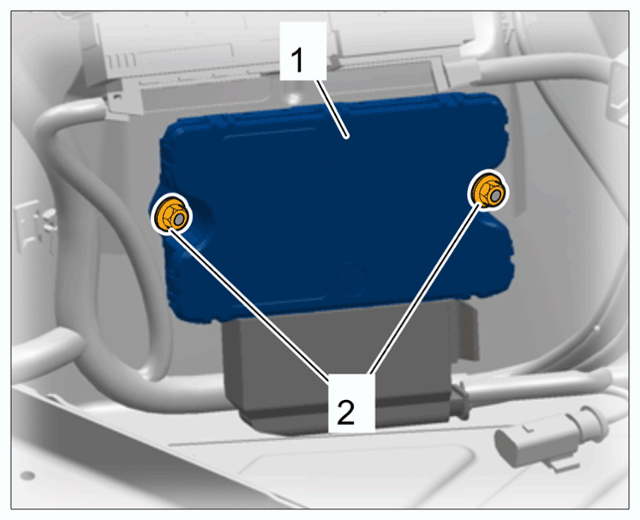

- Unscrew nuts -2- .
- Pull parking brake control unit -1-
. off the studs.
Loosening parking brake control unit

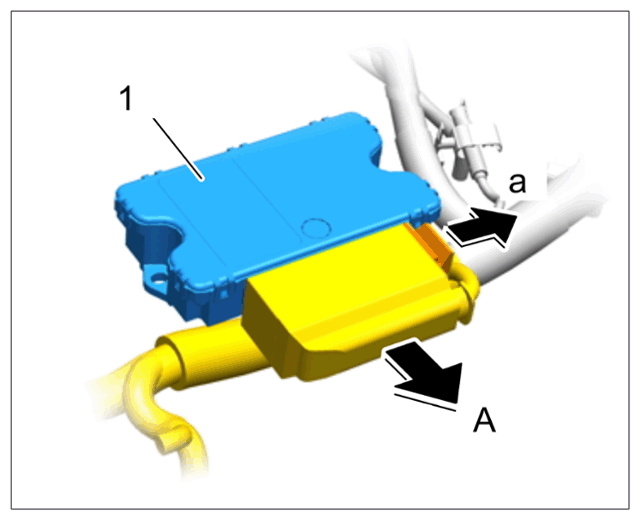

- Release electric plug connection on parking brake control unit -1-
(-arrows-) and disconnect it -arrow -A-
.
Releasing and pulling off electric plug connection
- Installation is performed in reverse order.
- Screw in and tighten nuts. > Tightening torque 4.5 (3.5 ftlb. 1 Nm .
