Removing Brake Pedal

Information

The pictures shown in this document may differ from the original.

1. Only for PDK:  Disengage push rod for brake booster (in the footwell).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressing out push rod

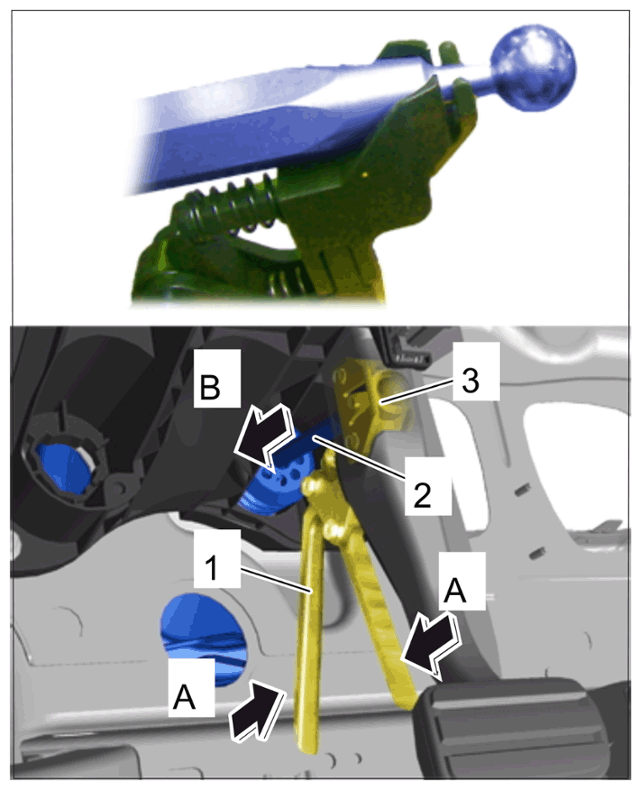

   1. 1.1  > T40024- Unlocking tool-1-  must be inserted ahead of the ball joint on the push rod -2-  from below.
   2. 1.2  Press unlocking tool together -arrows A-  and separate the ball joint from the retaining clip -3- (-arrow B-  )
2. Only for PDK:  Remove pedals

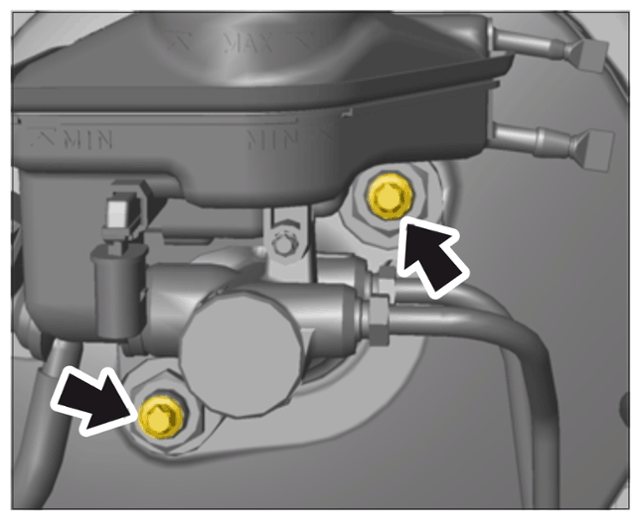

   1. 2.1  Unscrew and remove fastening screws -arrows- above the brake booster.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting pedals

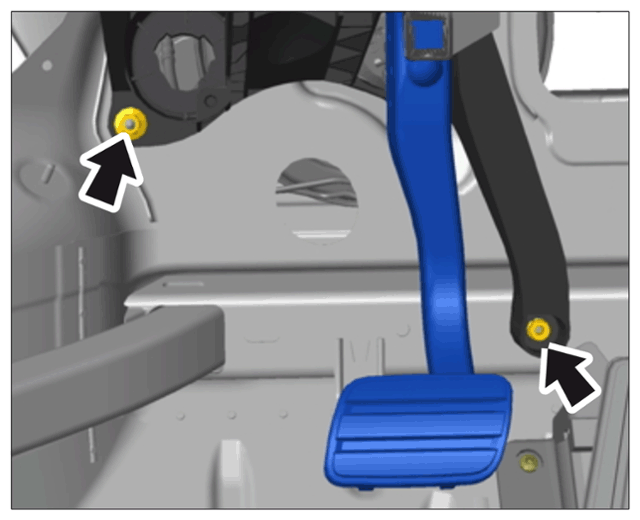

   2. 2.2  Unscrew and remove fastening screws -arrows-  from the brake booster.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting pedals

   3. 2.3  Screw off inner fastening nuts -arrows-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting pedals

   4. 2.4  Remove pedals.
3. Remove brake pedal.

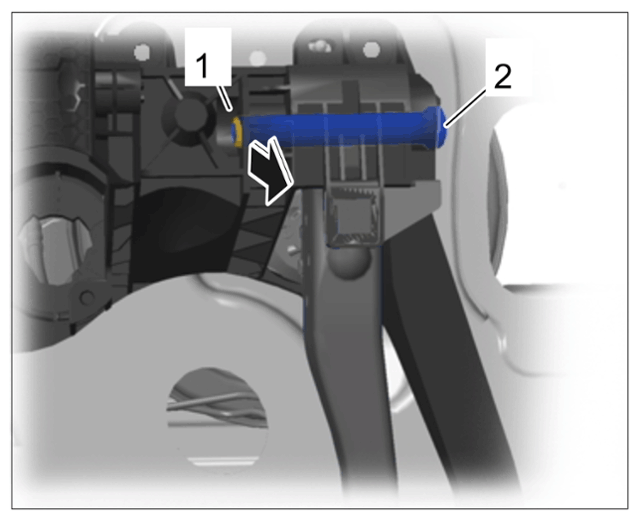

   1. 3.1  Pull out the lock -1-  at the left of the brake pedal shaft -2- (-arrow-  ).

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake pedal lock

   2. 3.2  Press brake pedal shaft out by a few millimeters from left to right using a suitable tool.

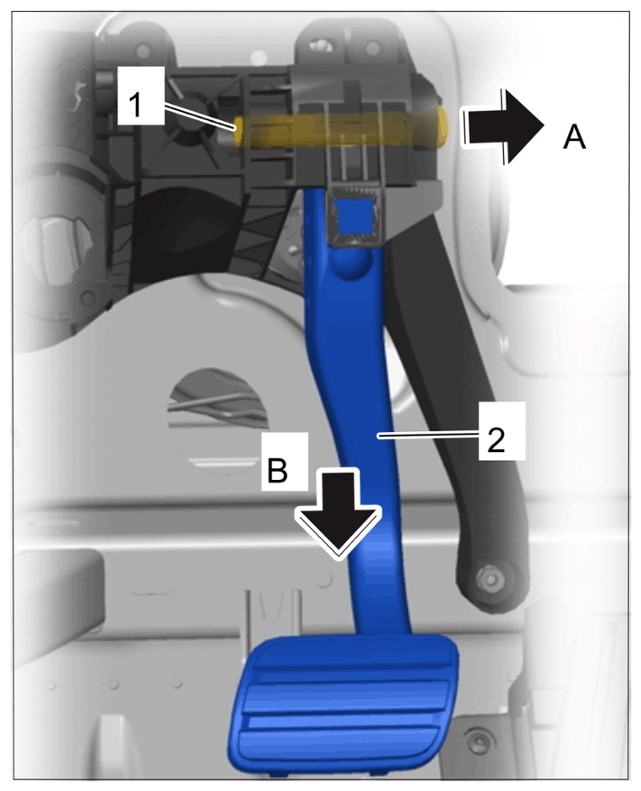

   3. 3.3  Carefully lever the brake pedal shaft -1-  out of the brake pedal fusing a suitable tool -arrow A-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing brake pedal

   4. 3.4  Remove brake pedal -2-  . by pulling it downwards -arrow B-  .
