Removing Sealing Ring On Right Halfshaft Flange

WARNING: This page is about a different variant/trim than selected.

Pull off the halfshaft flange -3- .
Information

Use spacer sleeves or nuts to prevent the screws from touching the transmission.

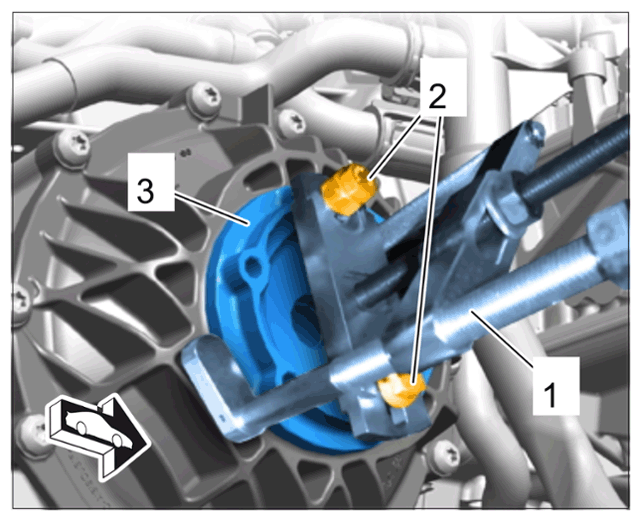

1. 1.1 > T10037 - Puller-1- must be fitted using two screws (M10 with fine thread ) -2- on the halfshaft flange -3- .
2. 1.2 Pull off the halfshaft flange -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

An assembly wedge or a commercially available screwdriver, for example, is ideal as a tool.

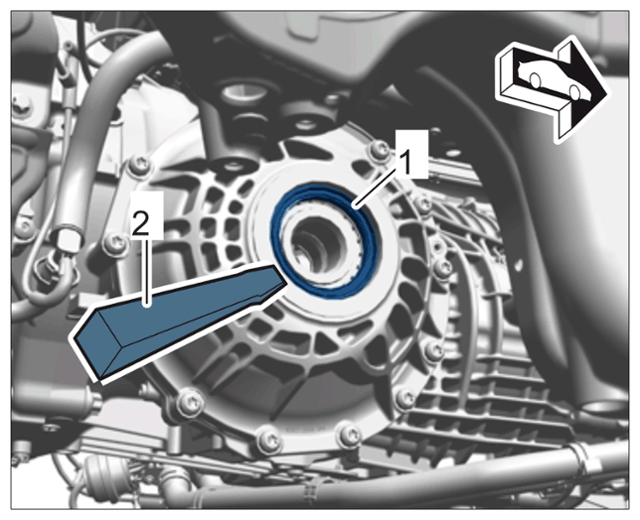

Carefully lever the sealing ring -1- out of the transmission using a suitable tool -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
