Installing Sealing Ring On Right Halfshaft Flange
WARNING: This page is about a different variant/trim than selected.

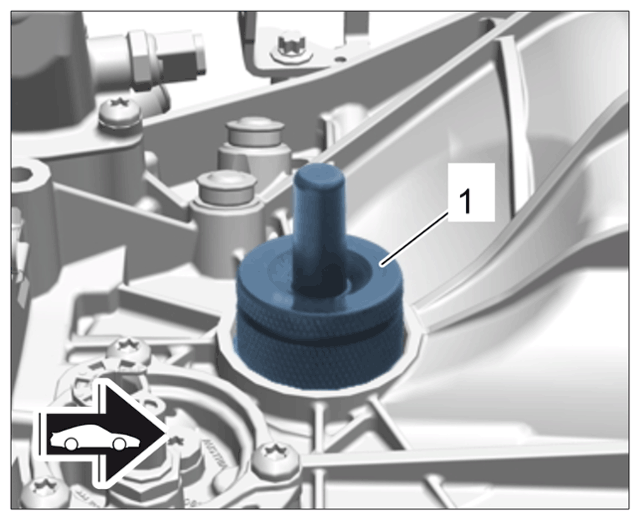

- Thinly coat sealing lip and outer circumference of sealing ring with Vaseline and place the sealing ring on > 9738 - pressure piece -1- .
- Install sealing ring into the transmission using > 9738 - pressure piece-1-
.

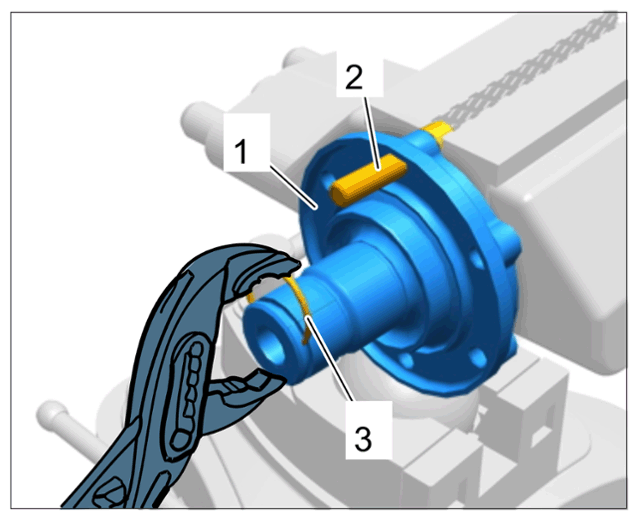

- Fit new circlip -3-
on the halfshaft flange -1-
.
- 3.1 Clamp the halfshaft flange -1- in a vice using a screw -2- .
- 3.2 Press out the old circlip using the new circlip -3- .

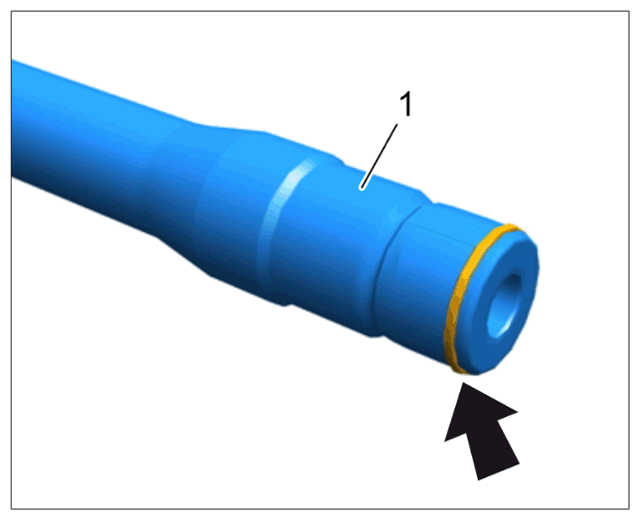

- Check halfshaft flange -1-
on the transmission end of the shaft -arrow-
for burrs and sharp edges and de-burr if necessary.
Information
Be careful of the sealing ring during installation and do not damage it. If the sealing ring is damaged during installation, it must be replaced again.
- Position halfshaft flange on the transmission and install it.
- Carefully clean transmission housing and adjacent components.
