Removing Bellows For Steering-Gear Housing

WARNING: This page is about a different variant/trim than selected.
  1. Clean the power-steering gear, tie rod and front-axle cross member close to the bellows.

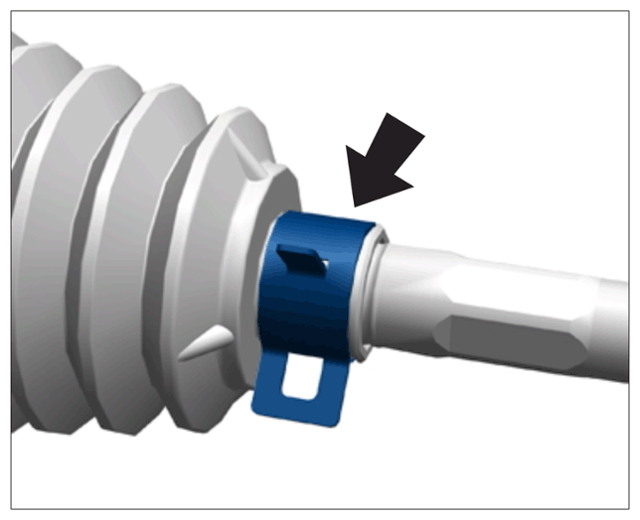

  2. Remove spring band clamp from the bellows -arrow-  using > VAS 6889 - Spring Band Clamp Pliers.
    G14948444Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spring band clamp on bellows

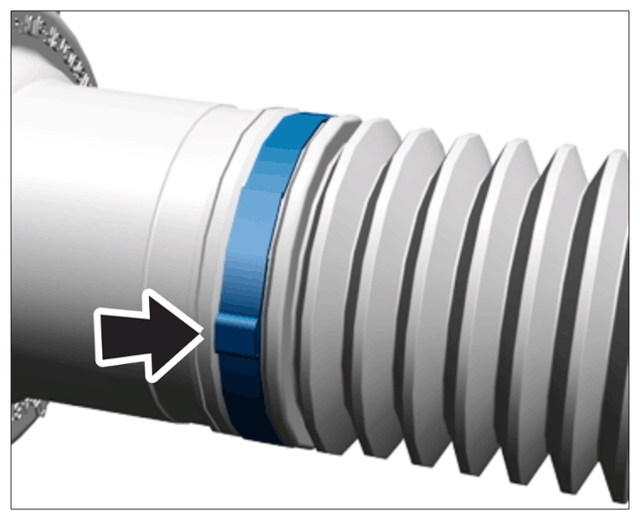

  3. Cut clamp -arrow-  using side cutters.
    G14948445Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clamp on bellows

  4. Pull the bellows off the steering-gear housing.
