Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance 1 Tolerance 2
Steering column adjustment control unit to steering column M5 screw Tightening torque 5 Nm (3.5 ftlb.)

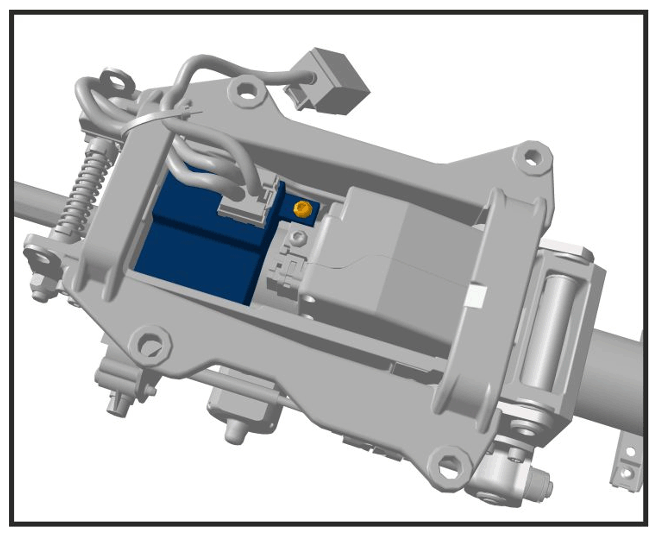

G14948437Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Steering column adjustment control unit to steering column
