Removing And Installing Control Unit For Steering Column Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. Remove control unit for steering column adjustment.
    1. 1.1  Release and unplug electric plug connection -2-  .
    2. 1.2  Unscrew and remove screw -1-  .
    3. 1.3  Lift up control unit for steering column adjustment and pull it out of the steering column -arrow-  .

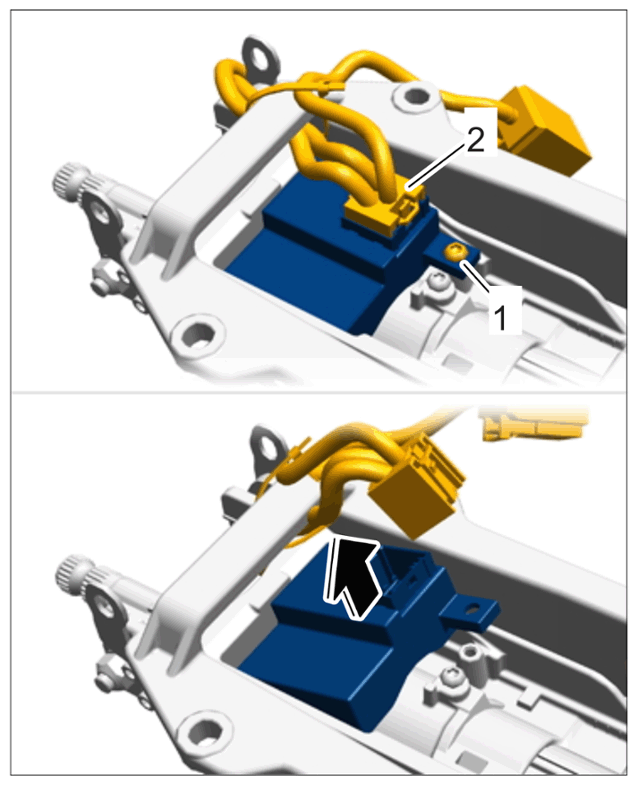

      G14948439Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Control unit for steering column adjustment

  2. Installation is performed in reverse order.
  3. Screw in and tighten screw on control unit for steering column adjustment. > Tightening torque 5 Nm (3.5 ftlb.)  .
