Removing And Installing Height Adjustment Switch

WARNING: This page is about a different variant/trim than selected.

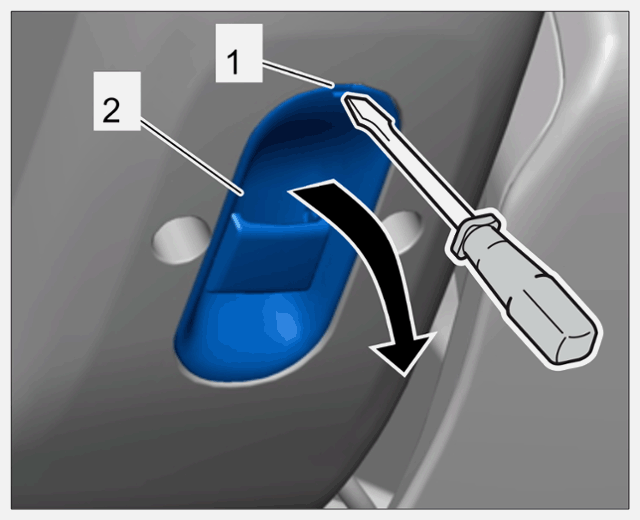

  1. Insert a screwdriver into the slit -1-  on the height adjustment switch -2-  .
  2. Unclip height adjustment switch -2-  . and loosen it -arrow-  until the electric plug connection is accessible.
    G14948435Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening height adjustment switch

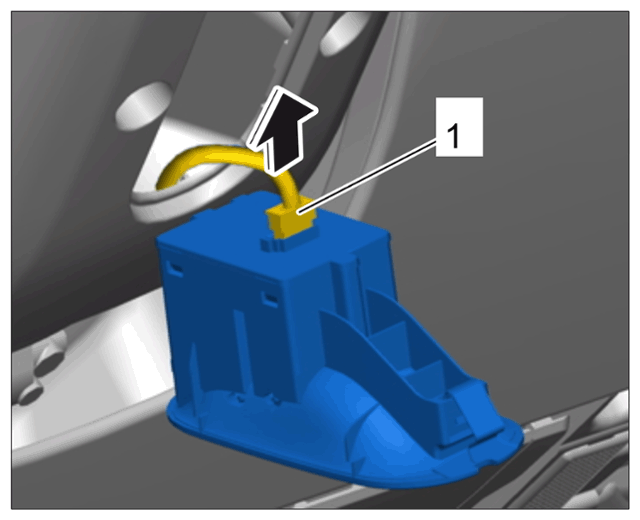

  3. Disconnect electric plug connection -1-  (-arrow-  )
    G14948436Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off electric plug connection

  4. Installation is performed in reverse order.
