Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description< Type Basic value Tolerance 1 Tolerance 2
Bottom joint to steering column (universal joint) Fit bolt (M8x30), always use new bolt following removal Initial tightening 20 Nm (15 ftlb.)

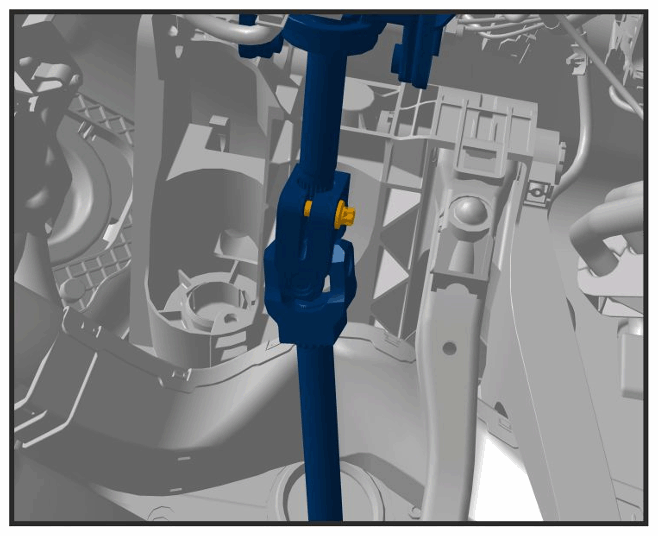

G14948420Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom joint on steering column
Bottom joint to steering column (universal joint) Fit bolt (M8x30), always use new bolt following removal Final tightening + 90°
G14948422Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom joint on steering column
Bottom joint to steering gear (universal joint) Fit bolt (M8x30), always use new bolt following removal Initial tightening 20 Nm (15 ftlb.)
G14948424Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom joint on steering gear
Bottom joint to steering gear (universal joint) Fit bolt (M8x30), always use new bolt following removal Final tightening + 90°

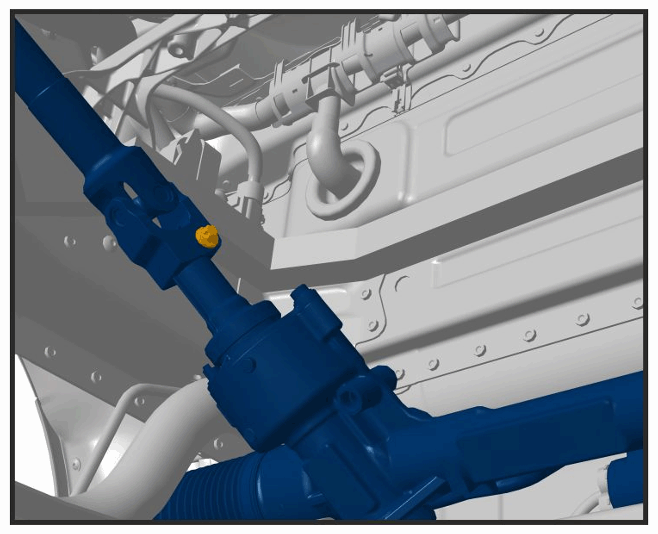

G14948425Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom joint on steering gear
