Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

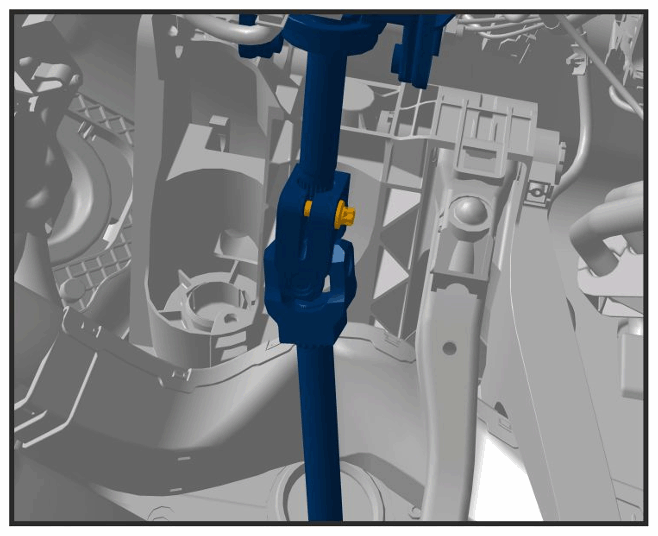

| Bottom joint to steering column (universal joint) | Fit bolt (M8x30), always use new bolt following removal | Initial tightening | 20 Nm (15 ftlb.) | ||
|
Bottom joint on steering column |
|||||
| Bottom joint to steering column (universal joint) | Fit bolt (M8x30), always use new bolt following removal | Final tightening | + 90° | ||
|
Bottom joint on steering column |
|||||
