Removing And Installing Trim Panel On Steering-Column Switch

1. 2.1  Turn the steering wheel in such a way that the openings on the front are accessible.

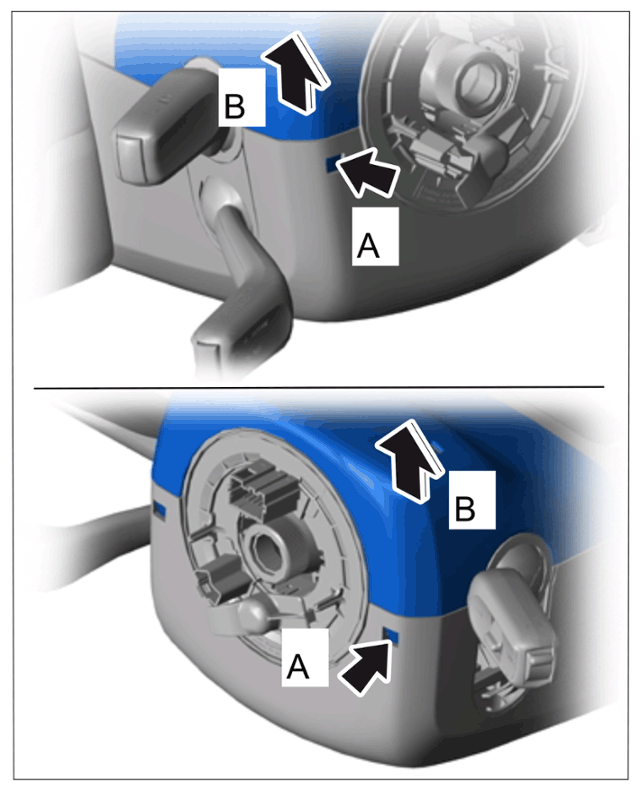

2. 2.2  Release upper part of trim panel on steering-column switch through the openings on the front using a screwdriver -arrows -A-  and unclip it in an upward direction -arrows -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and unclipping upper part of trim panel on steering-column switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

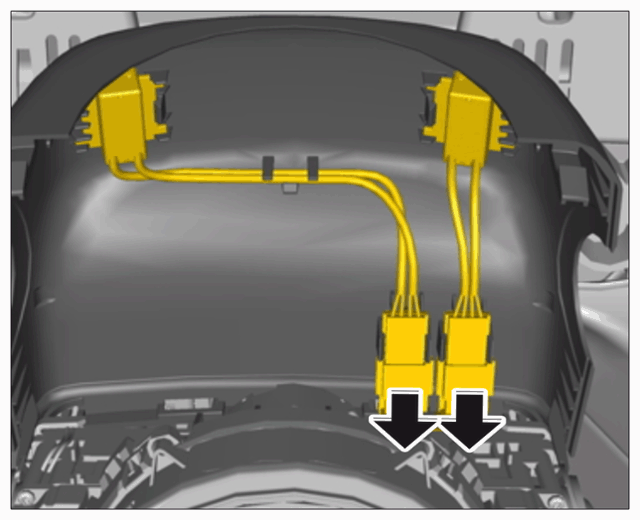

Disconnect the electric plug connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

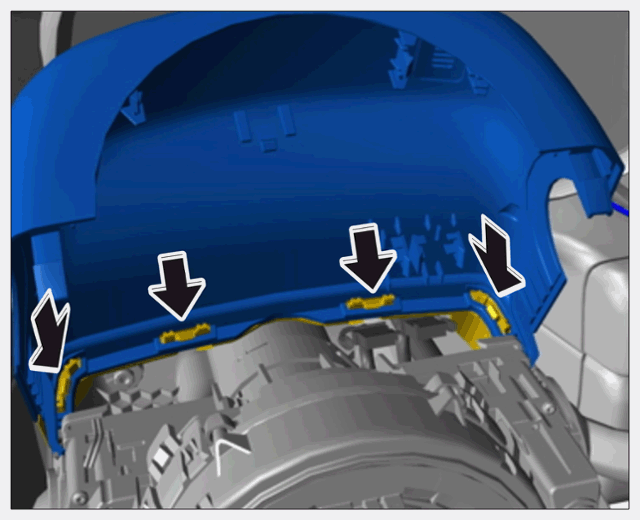

Removing upper part of trim panel on steering-column switch

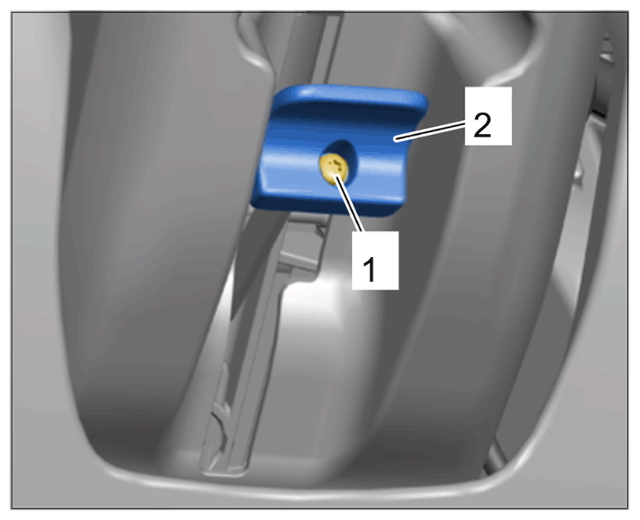

Unscrew and remove screw -1-  on steering-wheel adjustment handle -2-  and remove steering-wheel adjustment handle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing steering-wheel adjustment handle

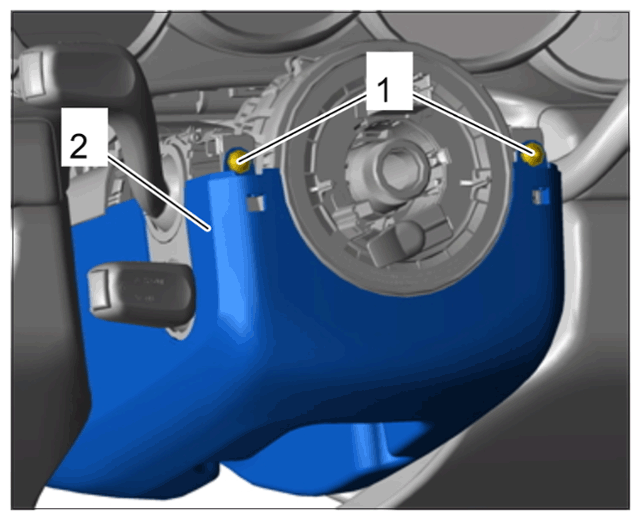

1. 6.1  Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Detaching lower part of trim panel on steering-column switch

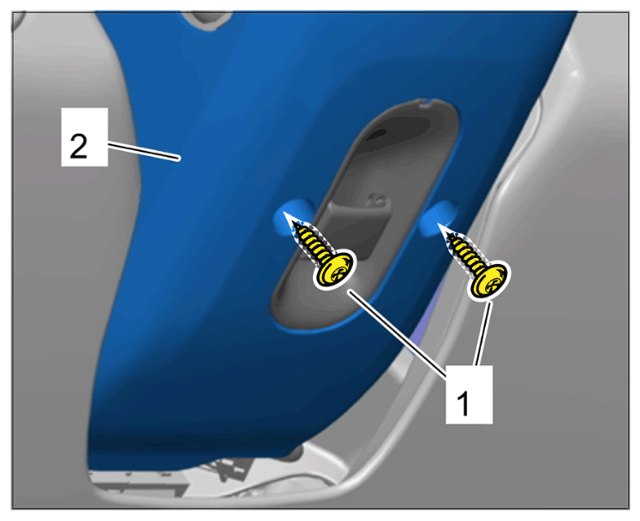

2. 6.2  Turn the steering wheel in such a way that the screws -1-  . on the front are accessible.
3. 6.3  Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Detaching lower part of trim panel on steering-column switch

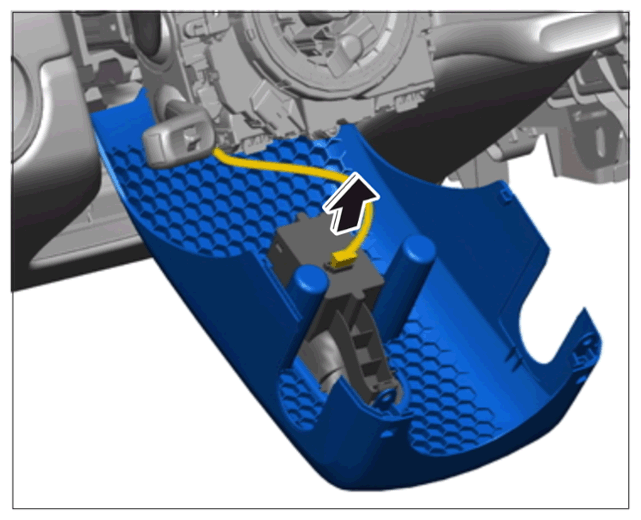

1. 7.1  Fold down lower part of trim panel on steering-column switch.
2. 7.2  Release and disconnect electric plug connection -arrow-  .
3. 7.3  Remove lower part of trim panel on steering-column switch.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing lower part of trim panel on steering-column switch
