Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Type	Basic value
Contact bridge to steering wheel skeleton	Tightening torque	6 Nm (4.5 ftlb.)

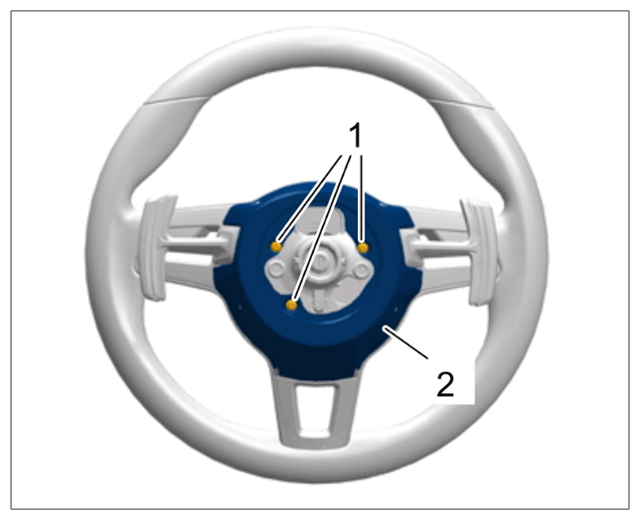

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for contact bridge
Multi-functional switch and front trim to main cover	Tightening torque	0.45 Nm (0.25 ftlb.)

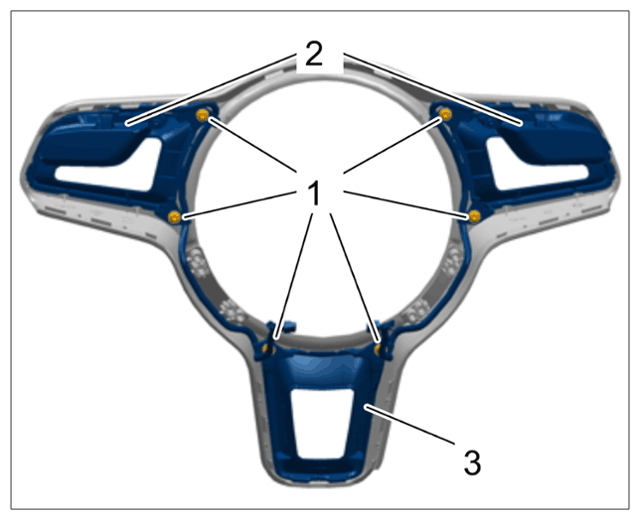

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for multi-functional switch and front trim at 6 o'clock position on main cover
Steering wheel skeleton to main cover	Tightening torque	2 Nm (1.5 ftlb.)

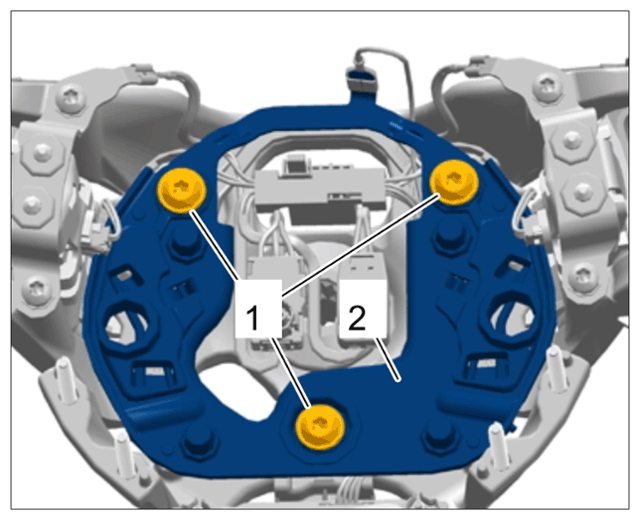

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for front trim
Paddles to steering wheel skeleton	Tightening torque	2.5 Nm (2 ftlb.)

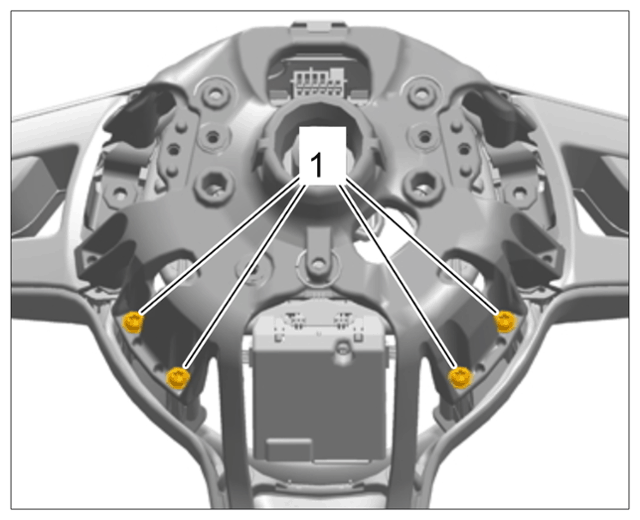

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for paddles
Rear cover to steering wheel skeleton	Tightening torque	2.7 Nm (2 ftlb.)

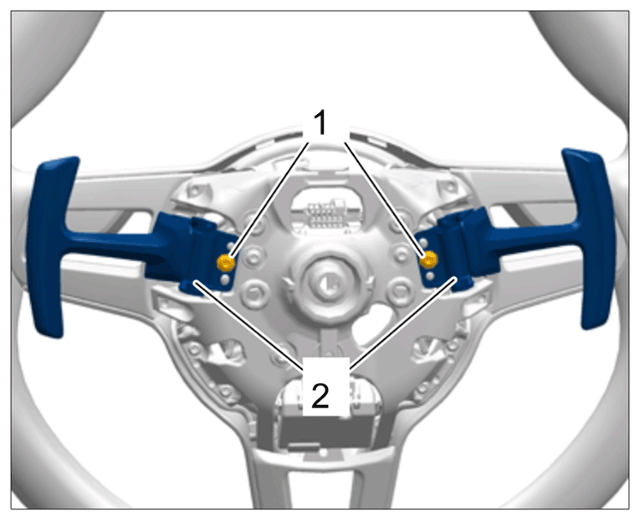

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for back cover
