Disassembling Steering Wheel

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew fastening screws -1-  on rear cover -2-  .
    G14948359Courtesy of PORSCHE CARS NORTH AMERICA, INC.

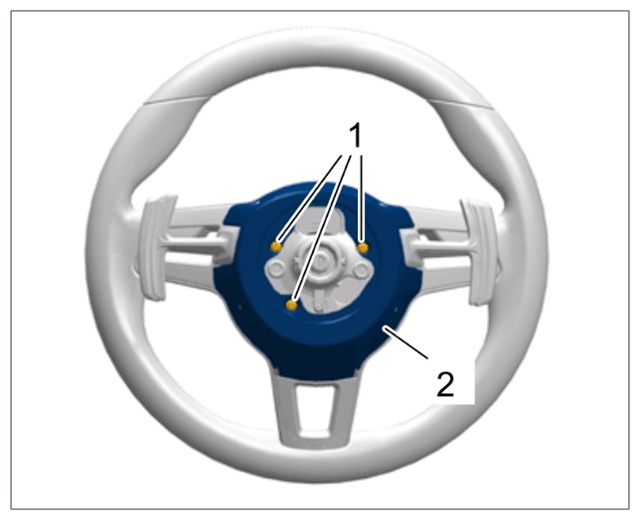

    Mounting for rear cover

  2. Release control unit -1-  at position -arrow-  and pull it forward slightly.
    G14948361Courtesy of PORSCHE CARS NORTH AMERICA, INC.

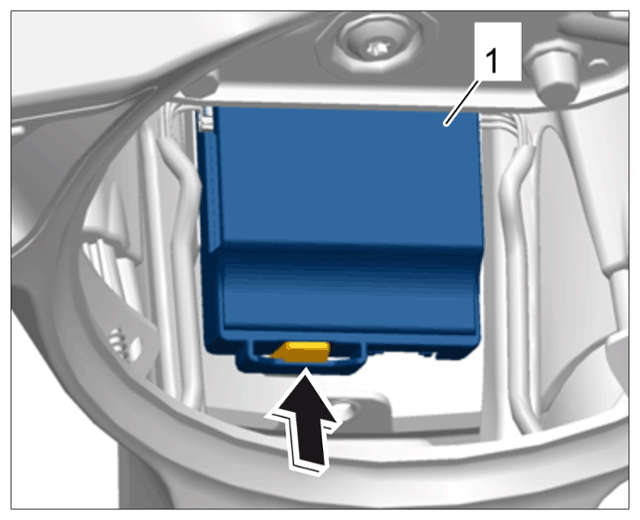

    Control unit mounting

  3. Remove rear cover -2-  .
    G14948362Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear cover

  4. Unscrew fastening screws -1-  for the paddles -2-  .
    G14948363Courtesy of PORSCHE CARS NORTH AMERICA, INC.

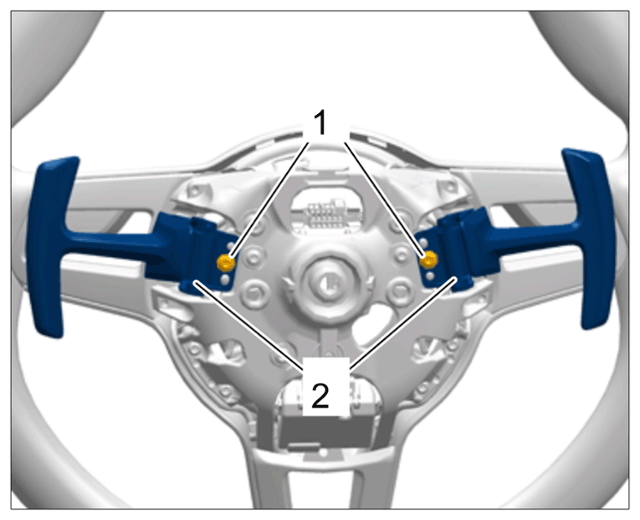

    Mounting for paddles

  5. Release and disconnect electric plug connection -1-  for the paddles.
    G14948364Courtesy of PORSCHE CARS NORTH AMERICA, INC.

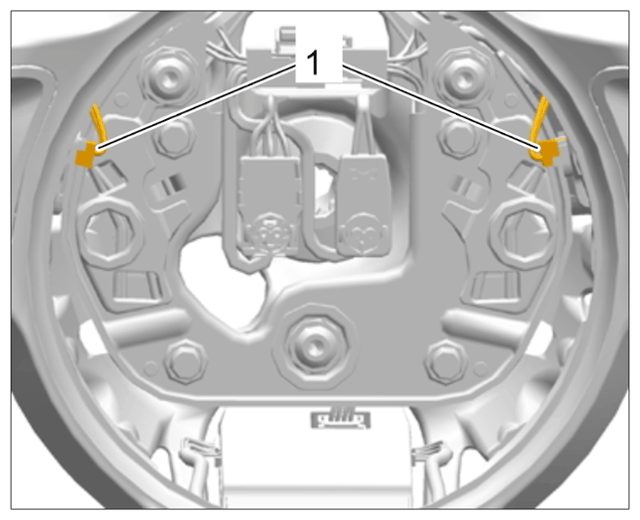

    Connector for paddles

  6. Lift paddles -2-  up and off.
    G14948365Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for paddles

  7. Unclip rear trims at positions -arrows-  using a suitable thin tool (e.g. feeler gauge).
    G14948366Courtesy of PORSCHE CARS NORTH AMERICA, INC.

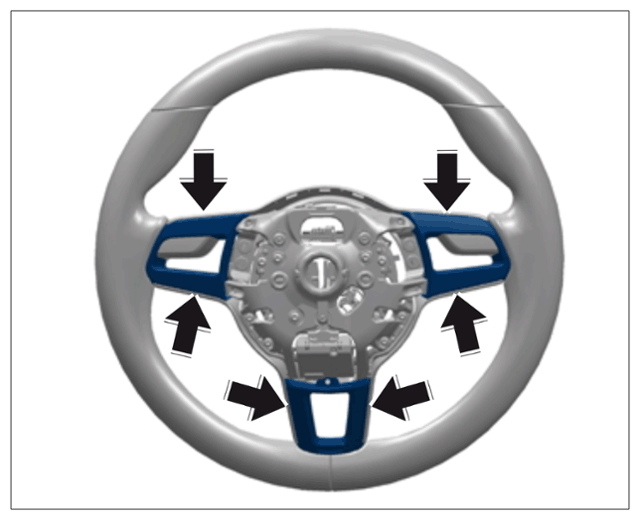

    Removing rear trims

  8. Only for heated steering wheel: Release electric plug connection -1-  from the rear trim at the 6 o'clock position -2-  and disconnect it.
    G14948367Courtesy of PORSCHE CARS NORTH AMERICA, INC.

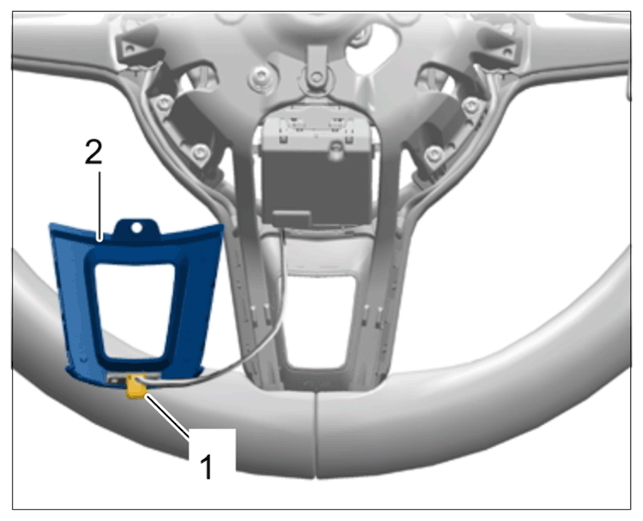

    Connector for heated steering wheel switch

  9. Unscrew fastening screws -1-  on the main trim.
    G14948368Courtesy of PORSCHE CARS NORTH AMERICA, INC.

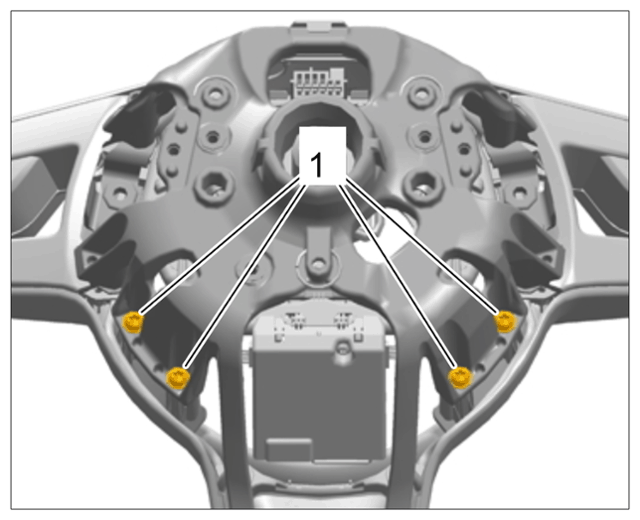

    Mounting for main cover

  10. Lift main trim -1-  straight up.
    G14948369Courtesy of PORSCHE CARS NORTH AMERICA, INC.

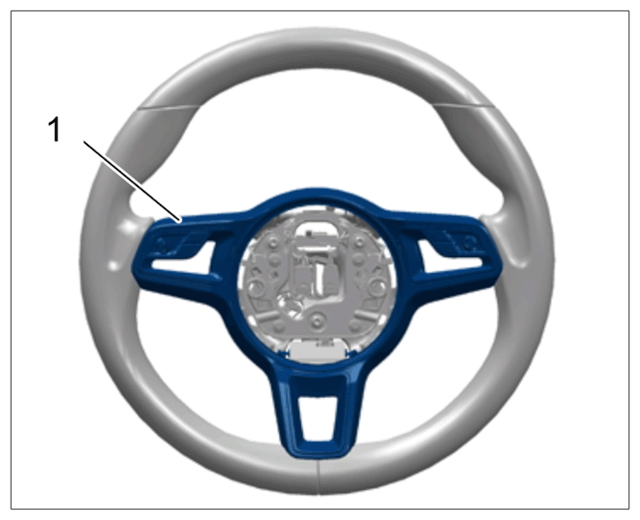

    Main cover

  11. Release and disconnect electric plug connections -1-  and remove main trim
    G14948370Courtesy of PORSCHE CARS NORTH AMERICA, INC.

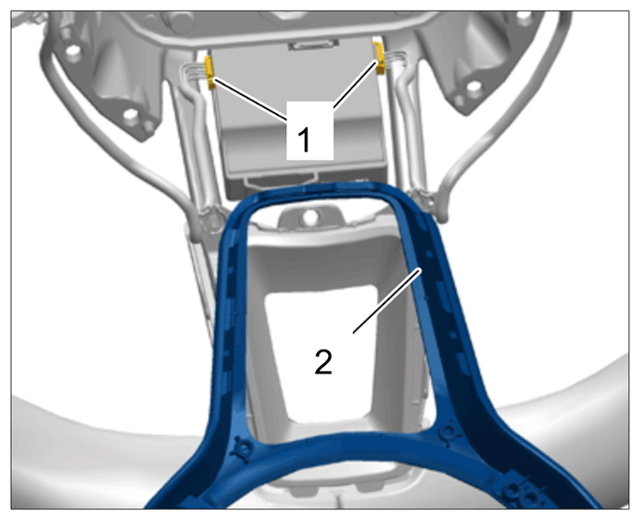

    Connector for multi-functional switch on control unit

  12. Unscrew fastening screws -1-  for the multi-functional switch and front trim -3-.
    G14948371Courtesy of PORSCHE CARS NORTH AMERICA, INC.

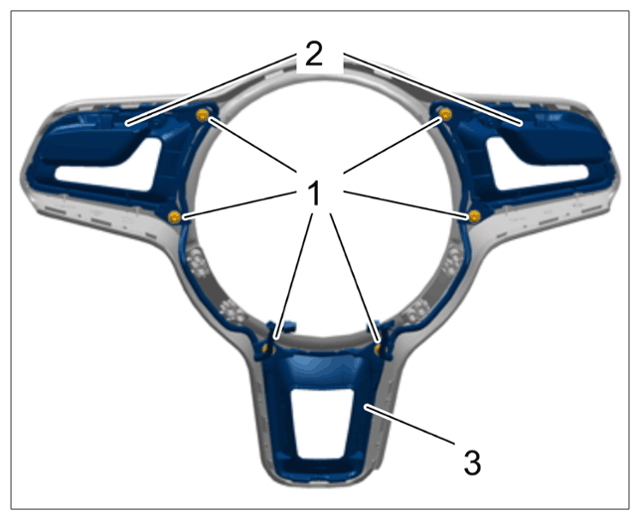

    Mounting for multi-functional switch and front trim on main cover

  13. Remove multi-functional switch:-2-  with cables and front trim -3-  .
  14. If Mode switch is installed, disconnect electric plug connection -1-  and remove Mode switch -2-  from the steering wheel.
    G14948372Courtesy of PORSCHE CARS NORTH AMERICA, INC.

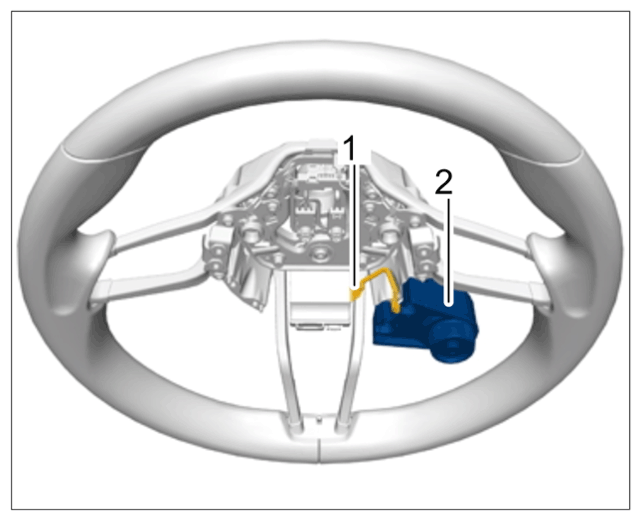

    Mode switch

  15. Disconnect connector -1-  from connector lugs.
    G14948373Courtesy of PORSCHE CARS NORTH AMERICA, INC.

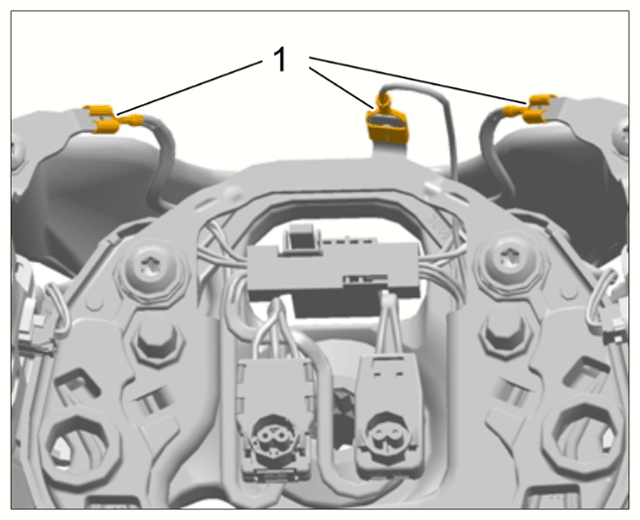

    Connector contacts

  16. Unscrew fastening screws -1-  on the contact bridge -2-  and remove contact bridge.
    G14948374Courtesy of PORSCHE CARS NORTH AMERICA, INC.

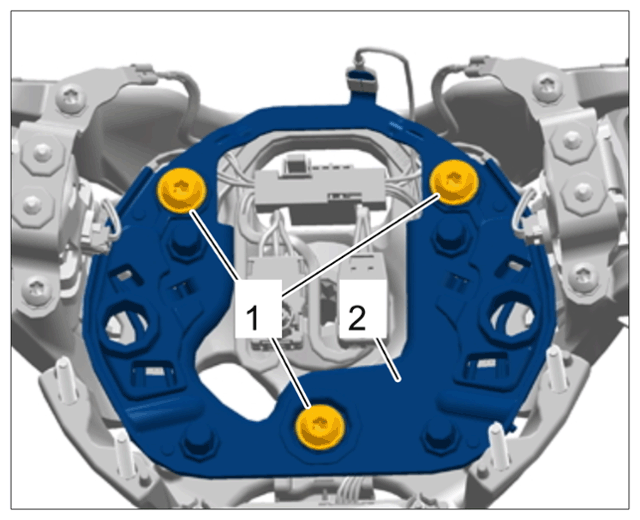

    Mounting for contact bridge

  17. Release electric plug connection -1-  . for wire harness -2-  from the control unit -3-  and disconnect it. On vehicles with heated steering wheel, the electric plug connection for the heated steering wheel must also be loosened at the control unit.
    G14948375Courtesy of PORSCHE CARS NORTH AMERICA, INC.

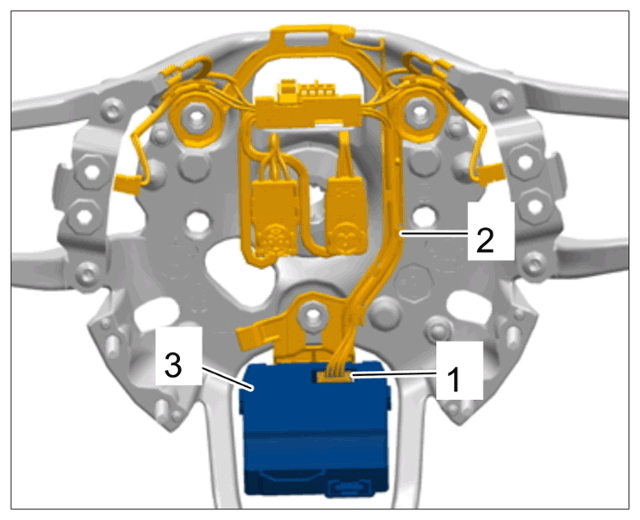

    Connector for wire harness on control unit

  18. Release wire harness -1-  at positions -arrows- from the steering wheel skeleton -2-  and remove it.
    G14948376Courtesy of PORSCHE CARS NORTH AMERICA, INC.

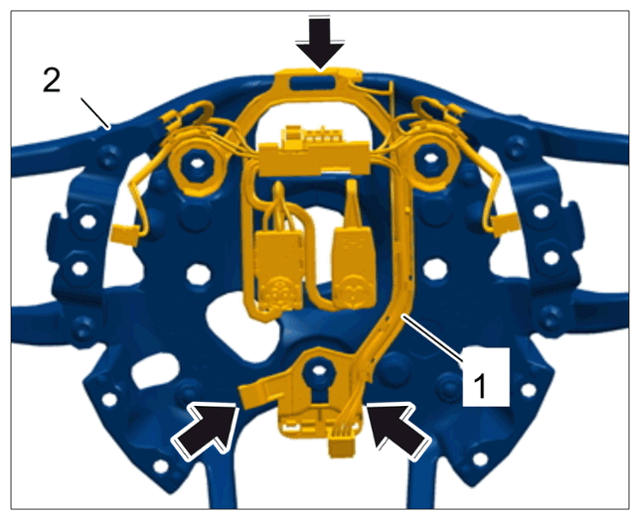

    Mounting for wire harness
