Assembling Steering Wheel

The steering wheel is assembled in reverse order to disassembly. Pay particular attention to the following:

1. Tighten fastening screws -1-  on the contact bridge -2-  . > Tightening torque 6 Nm (4.5 ftlb.)  .

   Check that the springs are fitted between the contact bridge and steering wheel skeleton and check that they are seated correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

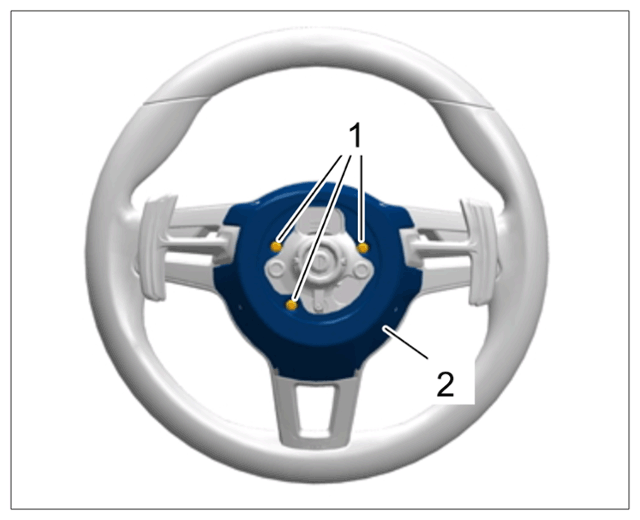

   Mounting for contact bridge

   Information

   Multi-functional switches can be used immediately after installation. They do not need to be coded.

2. Fit multi-functional switch -2-  . with cables and front trim -3-  into the main cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

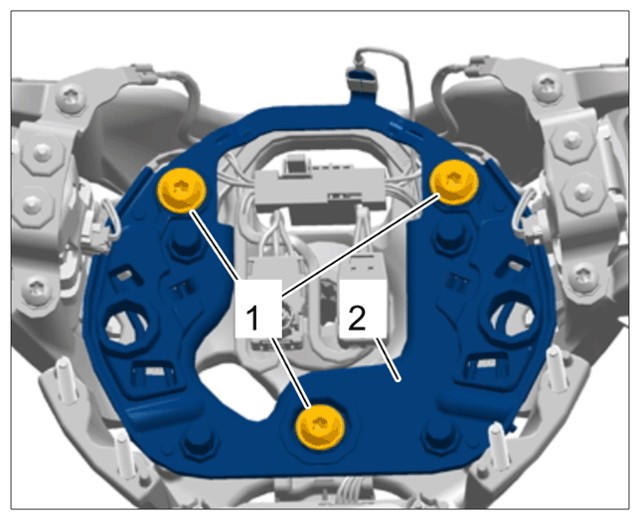

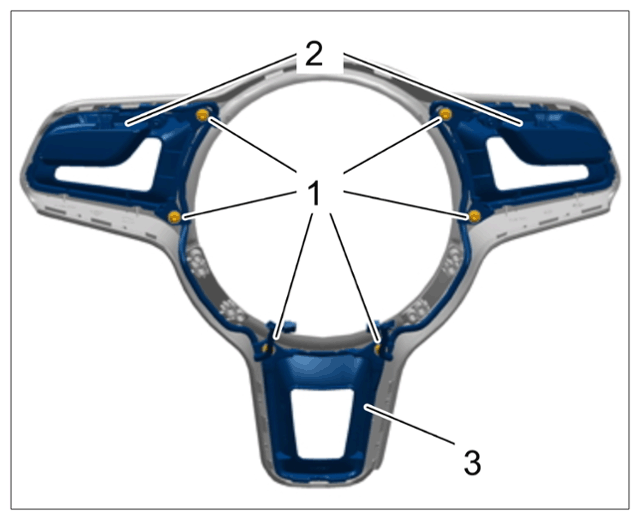

   Mounting for multi-functional switch and front trim on main cover

   Check cable routing! Route cables under the plastic lugs, see marked positions. > Cable routing for multi-functional switch in main cover  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

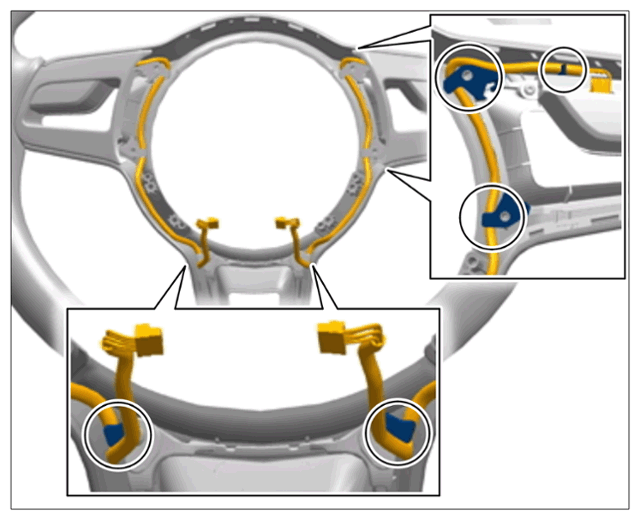

   Cable routing for multi-functional switch in main cover

3. Tighten fastening screws -1-  for the multi-functional switch -2-  and front trim -3-  . > Tightening torque 0.45 Nm (0.25 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for multi-functional switch and front trim on main cover

4. Fit Mode switch - if installed -1-  on the steering wheel and connect electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

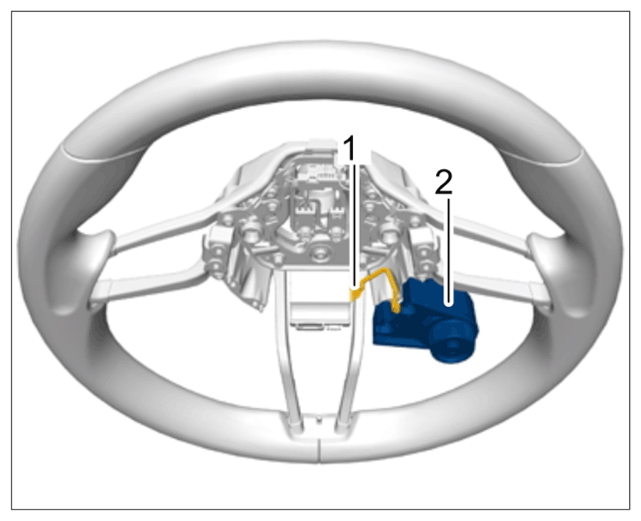

   Mode switch

5. Tighten fastening screws -1-  for main cover. > Tightening torque 2 Nm (1.5 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for main cover

6. Insert paddles into guides -1-  and -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

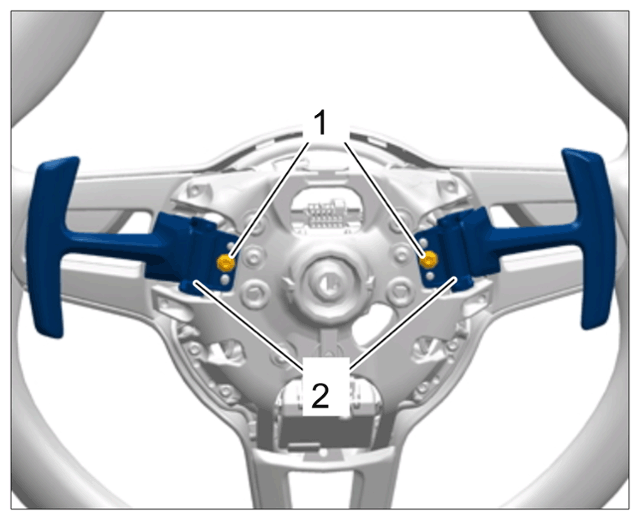

   Guides for paddles

7. Tighten fastening screws for the paddles > Tightening torque 2.5 Nm (2 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

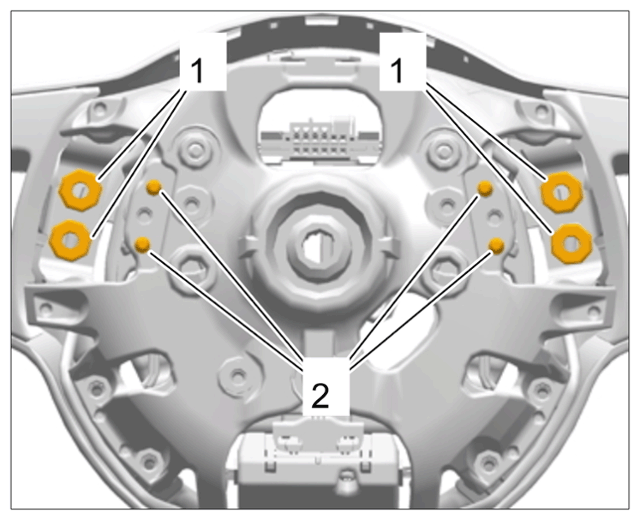

   Mounting for paddles

8. Insert control unit -1-  . at the rear in the steering wheel and lock it.

   Then lock the control unit at the front in the steering wheel at position -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

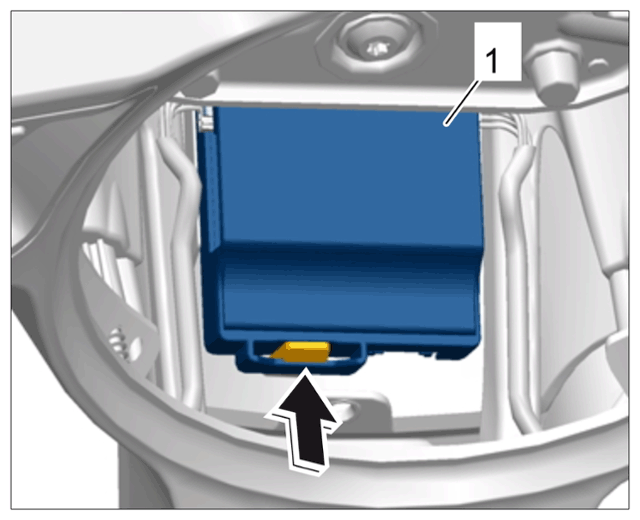

   Control unit mounting

9. Tighten fastening screws -1-  on the rear cover -2-  - > Tightening torque 2.7 Nm (2 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

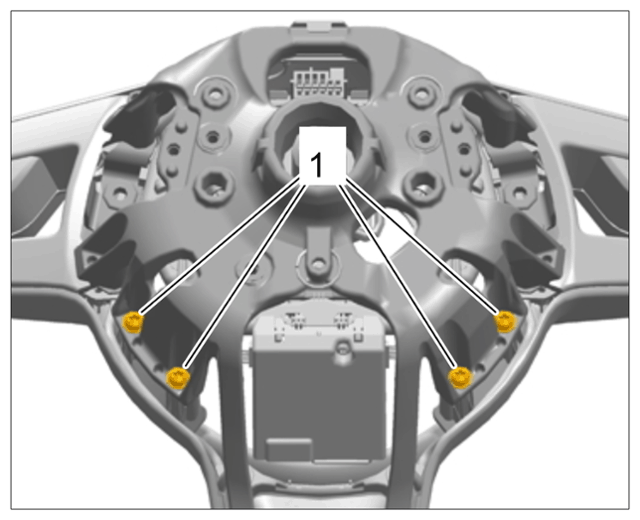

   Mounting for back cover
