Installing Steering Wheel Information

WARNING: This page is about a different variant/trim than selected.
  1. Installation is performed in reverse order.

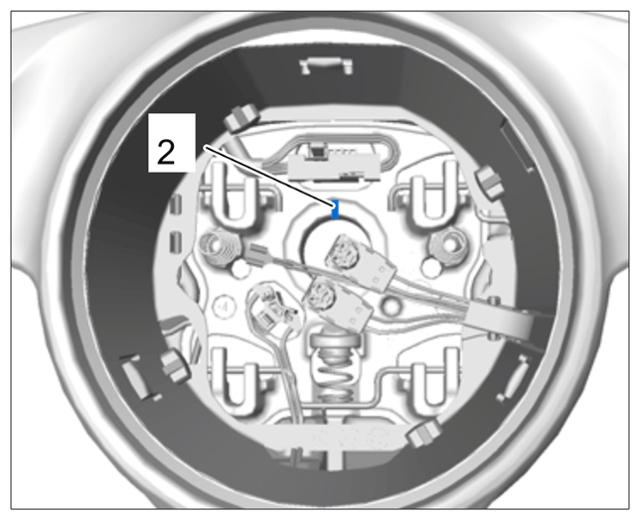

  2. When fitting the steering wheel, make sure that the marking -2-  . between the steering wheel and steering column is aligned.
    G14948349Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fitting steering wheel

  3. Screw in and tighten screw securing steering wheel to steering shaft. > Initial tightening 30 (22 ftlb.1 Nm  . > Final tightening (+) 90°
