Removing Steering Lock

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew and remove fastening screw -1-  .

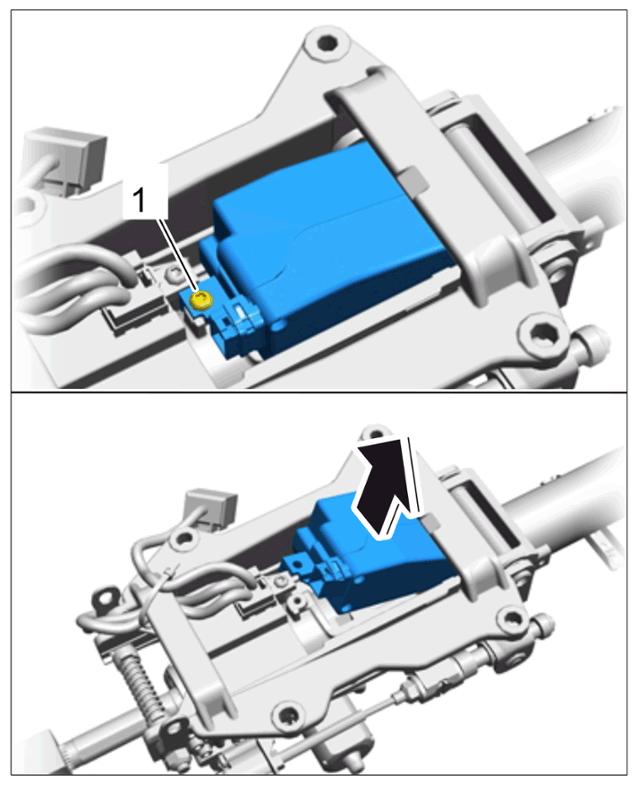

    G14948339Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing steering lock

  2. Lift up steering lock and pull it out of the steering column -arrow-  .
