Removing Connecting Link For Anti-Roll Bar
WARNING: This page is about a different variant/trim than selected.

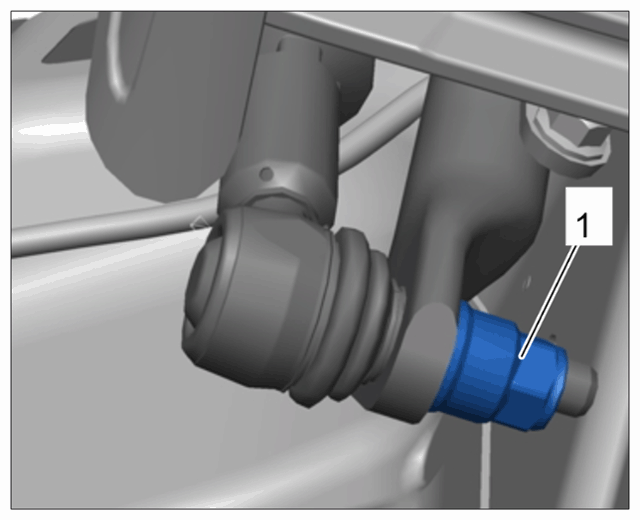

- Loosen connecting link -1-
from upper spring strut.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

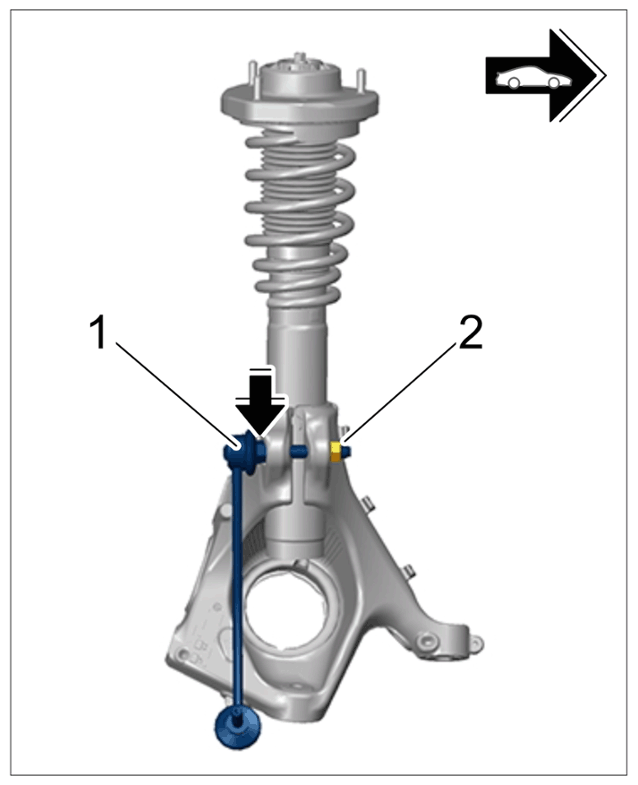

Removing connecting link from wheel bearing housing
- 1.1
Screw off fastening nut -2-
and counter at the hexagon -arrow-
on the connecting link,
- Loosen connecting link from lower anti-roll bar.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Lower connecting link mounting
