Installing Front Anti-Roll Bar

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

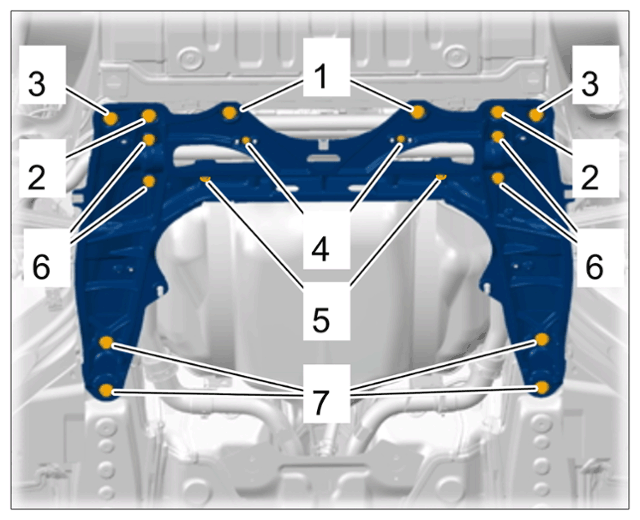

Front-axle carrier

1. 2.1  Carefully move the front-axle cross member into installation position using the hydraulic lift.

   Make sure not to trap any lines and plug connections.

   Check that the lines are routed correctly.

2. 2.2  Tighten fastening screws -1-  > Initial tightening 90 Nm (67 ftlb.)  > Final tightening + 90°
3. 2.3  Tighten fastening screws -3-  > Initial tightening 90 Nm (67 ftlb.)  > Final tightening + 180°
4. 2.4  Tighten fastening nuts -2-  and counter at the bolt using a Torx wrench. > Initial tightening 90 Nm (67 ftlb.)  > Final tightening + 90°
5. 2.5  Clip in clips for coolant pipes and tighten fastening screws -4-  > Tightening torque 10 Nm (7.5 ftlb.)
6. 2.6  Tighten fastening screws -7-  > Initial tightening 90 Nm (67 ftlb.)  > Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

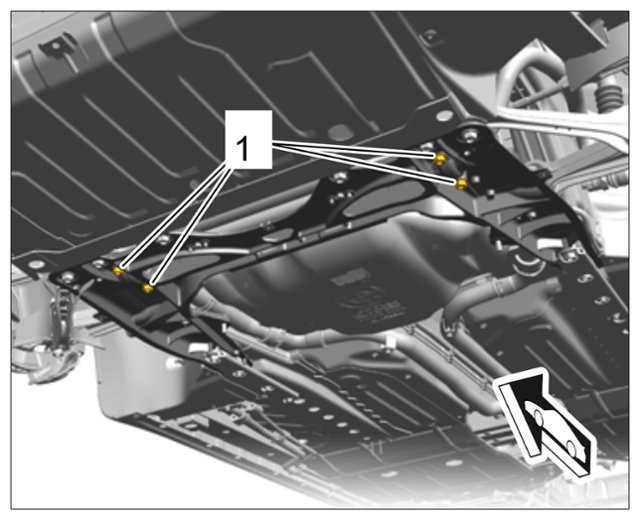

Anti-roll bar on front-axle cross member (shown on the 991)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

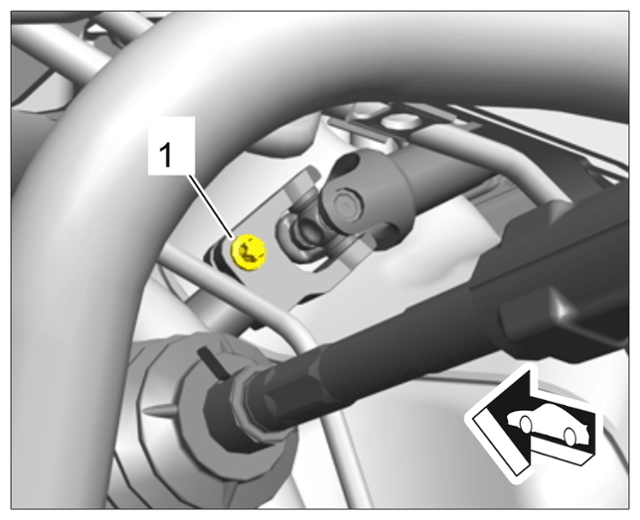

Universal joint for steering column

1. 4.1  Connect universal joint to the steering gear.
2. 4.2  Insert fastening screw -1-  into universal joint and tighten it. > Initial tightening 20 Nm (15 ftlb.)  > Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

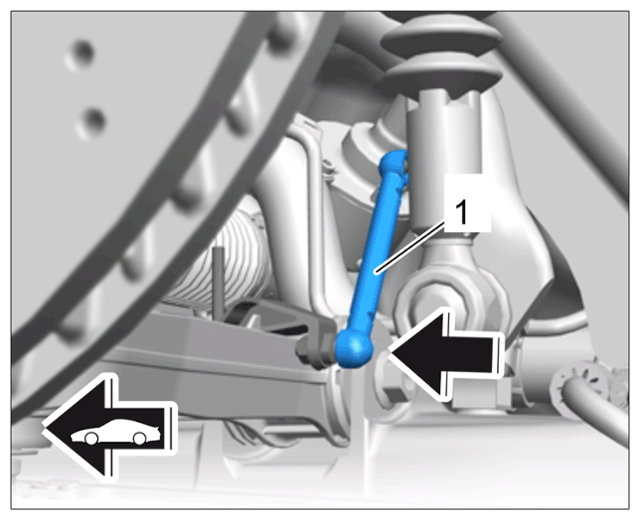

Lower connecting link mounting

1. 5.1  Guide ball-joint pin into the bore in the anti-roll bar.
2. 5.2  Tighten fastening nut -1-  To tighten the fastening nut, counter with a > 9546- screwdriver  at the ball-joint pin. > Initial tightening 40 Nm (30 ftlb.)  > Final tightening + 30°

   Information

   Following installation, seal the threaded joint securing tie rod to wheel bearing housing with wax as shown in -Illustration-  . Use Pfinder AP14/4 for this (see PIWIS Parts Information - PET).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

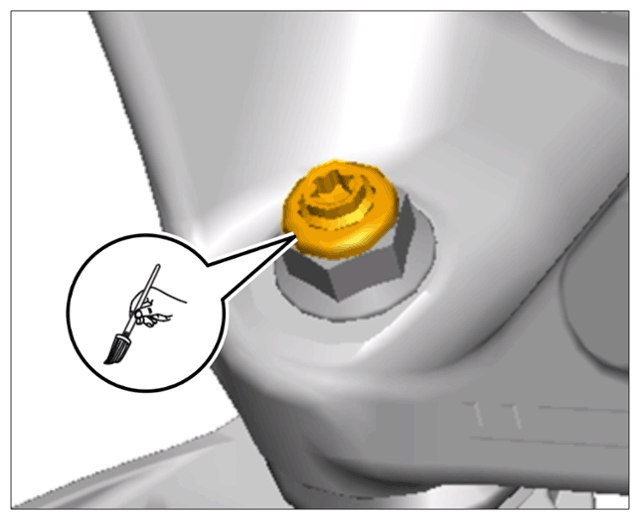

   Applying wax on marked area (shown on threaded joint securing lower trailing arm)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

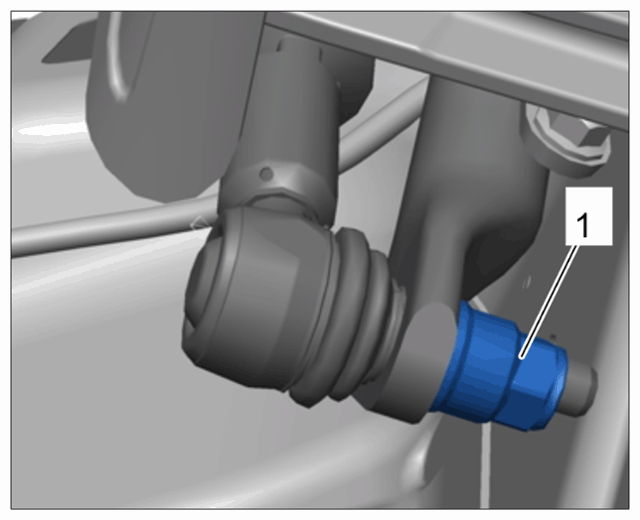

Fitting tie rod on wheel bearing housing

1. 6.1  Guide in control arm spoiler (air guide for brake cooling) and clip it in at the back of the longitudinal arm.
2. 6.2  Tighten fastening nut -1-  Counter with a > 9546 - screwdriver  at the ball-joint pin while doing this. > Tightening torque 85 Nm (63 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

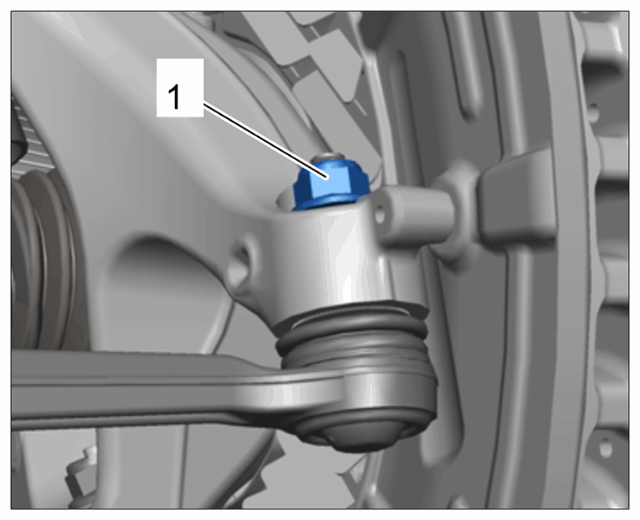

Ball joint on level sensor
