Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove the relevant hub cap using > 9229/1 - puller hook  and loosen the central nut at the wheel side from the tension bolt -1-  Operate the brake while doing this (2 mechanics required).

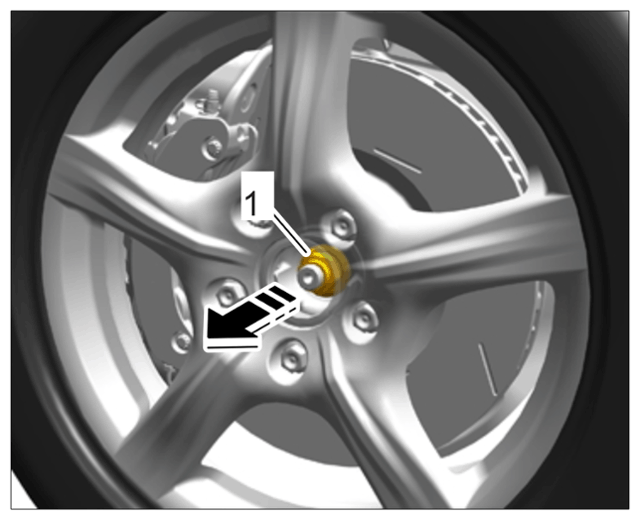

    G14947852Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Axle nut as an example

  2. Remove front wheel bearing housing

    405019 REMOVING AND INSTALLING FRONT WHEEL BEARING HOUSING

  3. Remove add-on parts from the wheel bearing housing (brake disc, brake cover plate, central tension bolt, speed sensor, cable holder).
