Removing Front Wheel Bearing Housing

Information

• If assembly work was performed or parts were replaced that affect the vehicle height, complete suspension alignment is necessary.
• Protect electric lines when removing and installing the spring strut on vehicles with PASM.
• Do not lift/transport the spring strut/vibration damper at the electric line.
• The ignition must be switched off before disconnecting the plug connection (PASM) for the spring strut.
• The spring strut and wheel bearing housing are removed from the vehicle together.
• A helper is needed in order to take out the spring strut/wheel bearing housing.

1. Remove connecting link from anti-roll bar.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

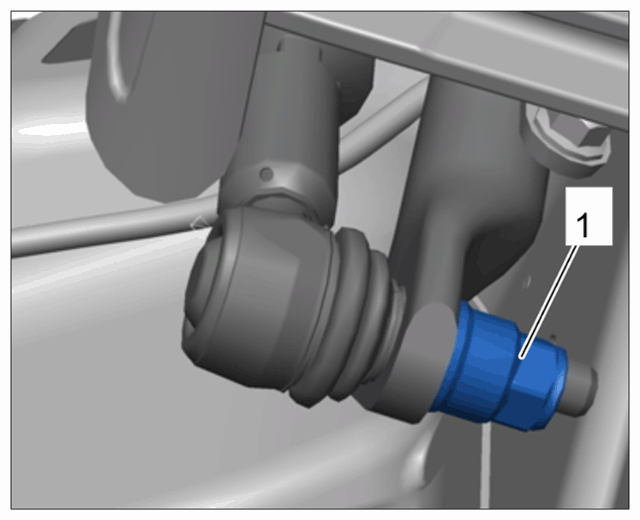

   Lower connecting link mounting

   1. 1.1  Unscrew fastening nut -1-  To unscrew the fastening nut, counter with a > 9546 - screwdriver  at the ball-joint pin.
   2. 1.2  Remove ball-joint pin from the bore in the anti-roll bar.
2. Loosen ball joint on the level sensor linkage -1-  from the lower trailing arm.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

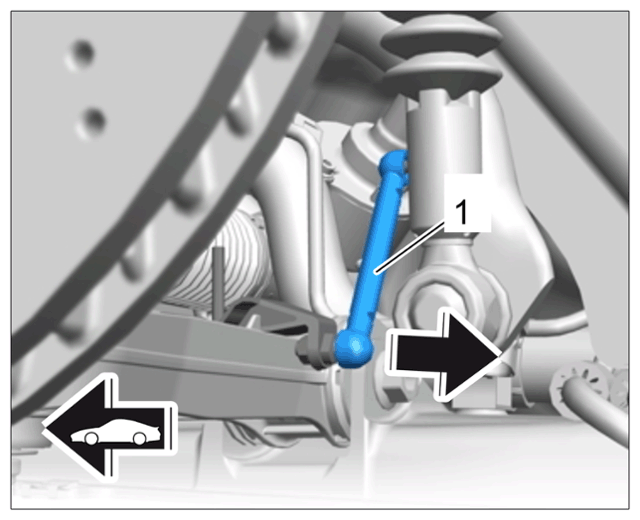

   Ball joint on level sensor

3. Loosen control arm spoiler (air guide for brake cooling] on the lower trailing arm and turn it up.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

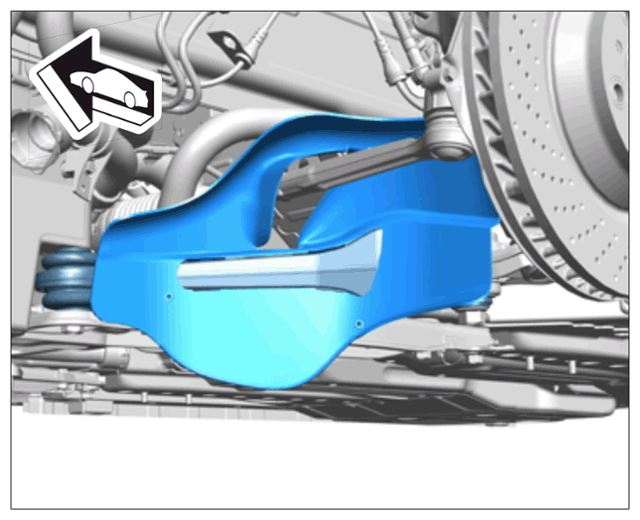

   Control arm spoiler

4. Remove tie rod from wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

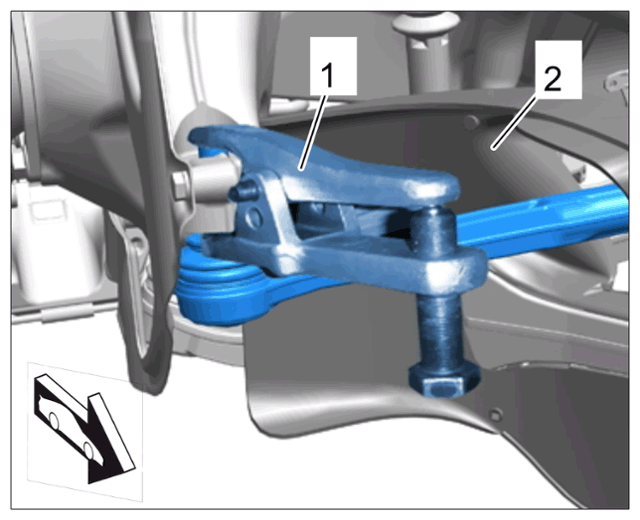

   Pressing off ball joint on tie rod

   1. 4.1  Unscrew lock nut and use a > 9546 - screwdriver  to counter at the ball-joint pin,
   2. 4.2  Coat the bellows and press-out tool with tire mounting paste to prevent damage to the bellows on the ball joint.
   3. 4.3  Press off tie-rod ball joint using > 9560- press-out tool-1-
5. Remove lower trailing arm from the wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

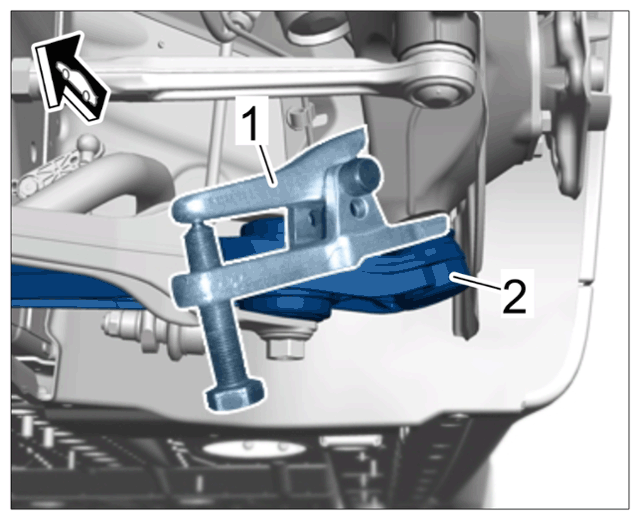

   Removing lower trailing arm from wheel bearing housing

   1. 5.1  Coat the bellows and press-out tool with tire mounting paste to prevent damage to the bellows on the ball joint.
   2. 5.2  Unscrew fastening nut on the ball joint of the lower trailing arm -1-  and press off the ball joint using > 9560 - press-out tool-2-  .
6. Disconnect plug connection for PASM in -holder-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installation position of plug connection for PASM

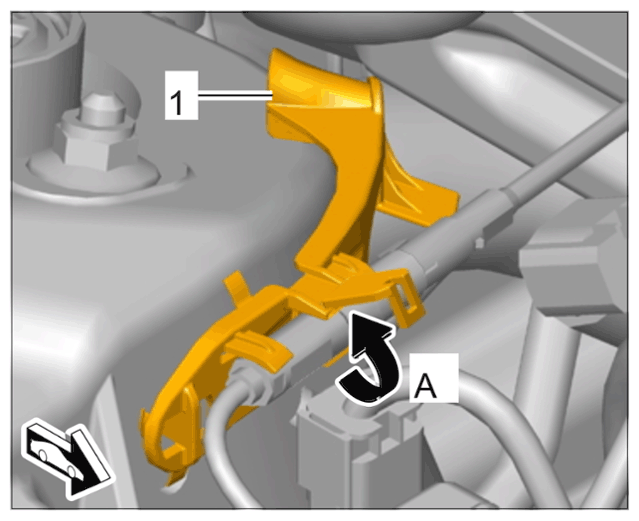

   1. 6.1  Open lower holder -arrow A-  ,

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

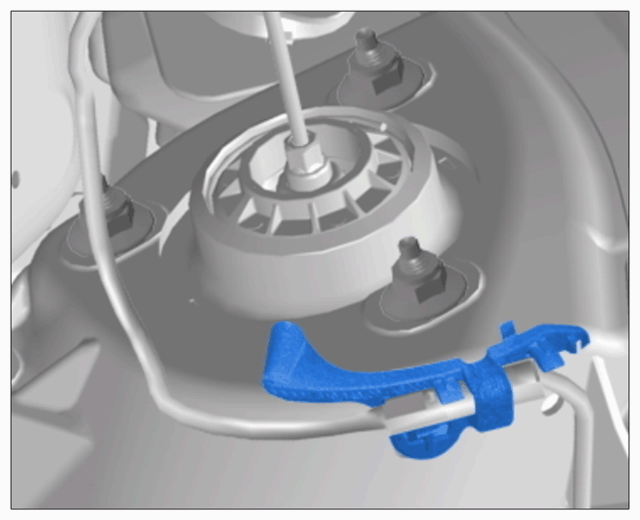

      Opening holder

   2. 6.2  Take plug connection out of the holder
   3. 6.3  Release plug connection -A- and pull -2 out of 1-  at the same time

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

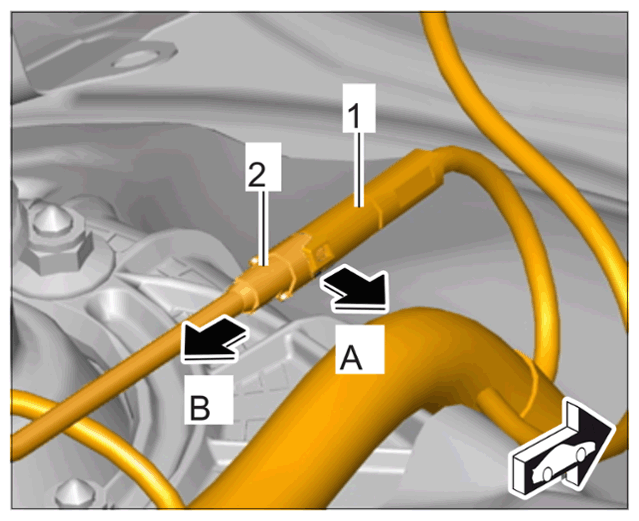

      Disconnecting electric plug connection

7. Remove upper spring strut from the body.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

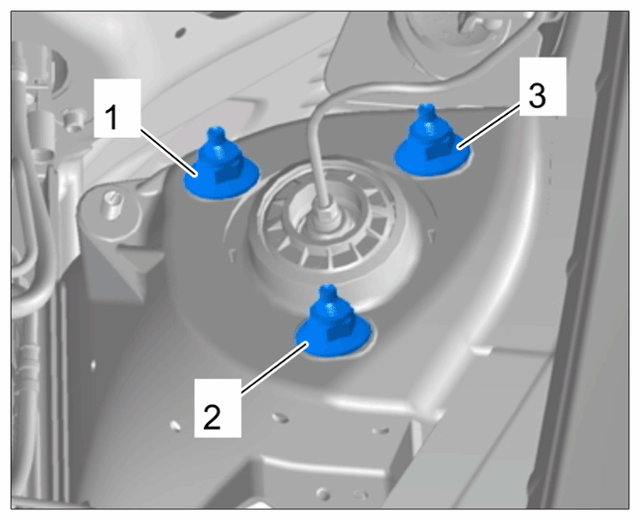

   Upper spring-strut mount

   1. 7.1  Mark installation position of the fastening nuts -1 to 3-.
   2. 7.2  Screw off fastening nuts -1 to 0.3-  .
8. Remove spring strut with wheel bearing housing.
9. Loosen clamped connection securing spring strut to wheel bearing housing.
   1. 9.1  Carefully secure the wheel bearing housing on a work bench.
   2. 9.2  Remove connecting link -1-  from wheel bearing housing.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

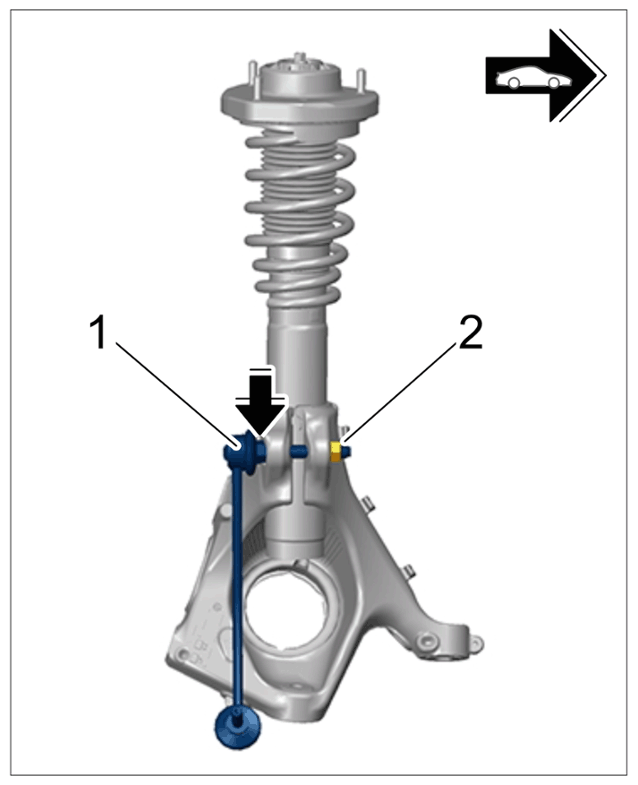

      Removing connecting link from wheel bearing housing

      1. 9.2.1  Screw off fastening nut -2-  and counter at the hexagon -arrow-  on the connecting link.
   3. 9.3  Remove spring strut from wheel bearing housing.
