Removing Front-Axle Support

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect electric plug connection -3-  the TPM control unit -1-  .
    G14947764Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    RDK control unit

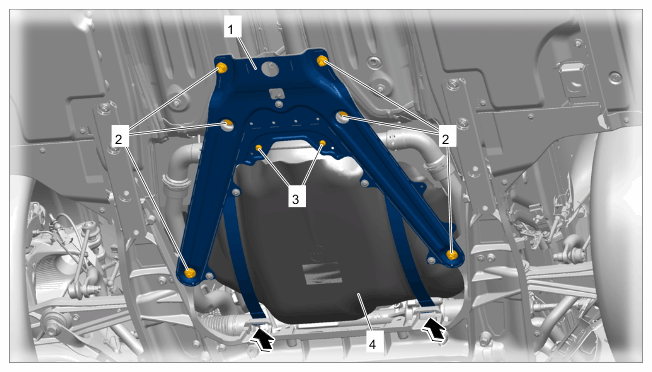

  2. Unscrew fastening screws -3-  for coolant pipes.
  3. Unscrew fastening nuts and fastening screws -2-  .
  4. Swivel the front-axle support -1-  down and disengage retaining straps for the fuel tank -arrows-  .

    Information

    Different fuel tank trays are used depending on the vehicle type.

  5. Remove fuel tank tray -4-  by moving it downwards.
    G14947765Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front-axle support
